Scag Turf STCII-52V-25CV-EFI

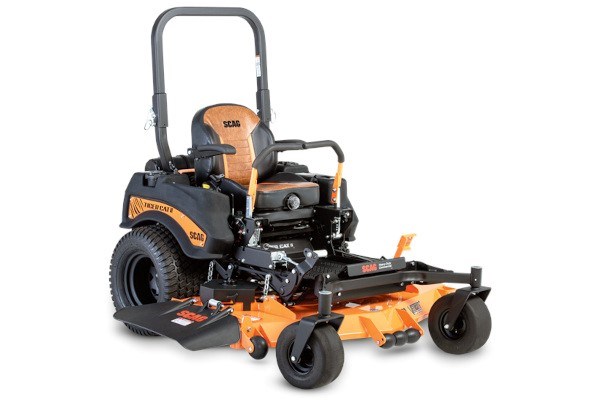

Tiger Cat II STCII-52V-25CV-EFI

No Image Available
No Image Available



Features

  • Heavy-duty hydraulic drive system includes dual 12cc Hydro-Gear hydraulic pumps and large capacity Parker wheel motors for reliable, zero turn maneuverability.
  • Up to 12 MPH forward and 5 MPH reverse speeds keep productivity at a maximum.
  • Ogura GT3.5 PTO clutch brake has 250 ft. lbs. of torque for easy blade engagements and solid holding power in heavy cutting conditions. Adjustable air gap ensures long component life.
  • Compact mower size enables you to take the Tiger Cat II into tight places. The Tiger Cat II occupies less space on your trailer without sacrificing performance.
  • Choose a 48", 52" or 61" Velocity Plus™ cutter deck. Match that with a Kawasaki FS series, Kawasaki FX series , Kohler Command Pro, or Kohler EFI.
  • Heavy-duty, fully-welded tubular steel frame provides a solid foundation for years of reliable service; replaceable front caster wheel weldment.
  • Torsion spring suspension seat adjusts to operator’s weight to provide superior comfort. Seat features full padding, forward/rearward adjustment, high back, adjustable armrests and adjustable back angle.
  • 4-point rubber iso-mount system under the seat absorbs front-to-back and side-to-side energy to soften the bumps and provide an incredibly comfortable ride.
  • Dual fuel tanks (9.5 gallons total) keep you in the field cutting grass. Fuel tanks feature extra large, angled filler necks for easy filling. Molded-in cup holder allows for added operator convenience and comfort. Built-in fuel gauge.
  • Aluminized engine exhaust reduces back pressure, increases performance, and lasts longer than conventional steel construction.
  • 12cc hydraulic pumps equipped with cooling fans provide smooth and reliable power. Built in pressure relief valves reduce internal pressure spikes and add to hydraulic component life.
  • Standard equipment auxiliary canister air filter system on most Tiger Cat II's. This provides increased service intervals and longer engine life.
  • The foot plate area is extra-large for improved operator comfort and easier mounting and dismounting of the mower. Flip-up foot platform features an auto-latch
  • The Scag "Simply the Best" commercial warranty stands behind you and your mower for years of profitable service.
  • Spring-loaded idler arms effortlessly keep belts in constant adjustment for maximum life and minimum maintenance.
  • "Split-Steel" pulleys are used on load-carrying areas like the cutter deck spindles and pump drive systems. Split steel pulleys are stronger than cast-iron or stamped pulley designs. Our pulleys are strong for long life and lightweight for reduced inertia and decreased wear on the cutter deck drive system.
  • No plastic pulleys - Some [other brands] actually use plastic pulleys on their mowers. Not Scag. All Scag pulleys are made from metal. Plastic is for toys.
  • High-quality bearings and bearing debris guard on idler pulleys ensure long, reliable service.
  • Tapered roller bearings are utilized in the front caster wheels and in the caster pivots for durability and reduced maintenance. These bearings can handle a 50% larger load than standard ball bearings. They are well suited to handle the daily pounding the front caster wheels receive.
  • Standard-style steering controls are ergonomically-shaped and padded for easy control and maximum operator comfort.
  • Multi-point steering dampers are designed and located for smooth operation and minimal fatigue. Mount the dampers in one of three mounting locations for a customized feel.
  • Easily adjust cutting heights from the seat with the convenient adjustable foot pedal and top access cutting height selector. Wide range of adjustment from 1" to 5" in 1/4" increments.
  • Four corner deck adjustmentallows for easy in-the-field deck leveling adjustment.
  • Marbain cutter blades stay sharp longer for reduced maintenance.
  • Heavy-duty blade drive spindles provide reliable, top-notch performance day in and day out.
  • Custom-Cut Baffle allows you to customize the cutter deck to your individual cutting conditions.
  • Large drive tires ensure solid traction and easy curb climbing. Large pneumatic front caster tires for a smoother ride.
  • Interlocked parking brake system prevents movement while trailering or when parked on inclines. The mower cannot be driven when the brake is applied. This prevents premature brake wear.
  • Operator friendly instrument panel located just to the left of the operator. It includes Tiger Eye: Advanced On-Board Monitoring System, ignition switch, mower engagement switch, and separate choke and throttle controls.
  • 12V accessory plug allows charging of the phone and other small accessories.
  • User-friendly design allows quick access to the engine and filters, for easy maintenance.
  • Engine oil drain makes maintenance clean and easy.
  • Replaceable trim side wear pad on the cutter deck helps protect landscape and the edge of the cutter deck from wear and tear.
  • High quality electrical components such as switches, wiring, sealed fuses and harness looms are used throughout the Scag mower line for dependable service.
  • Foldable Rollover Protection System (ROPS) is standard equipment and easily fits into enclosed trailers. ROPS provides additional operator safety. Retractable seatbelts for added convenience.
  • There are many productive accessories for the Tiger Cat II like the Tiger Striping kit, the 16 bushel spindle driven grass catcher, the 12 bushel dump-from-the-seat catcher system, and many more.
  • *Actual ground speed may vary. Specifications subject to change without notice or obligation.

Specifications

Tiger Cat II- Product Dimensions 52" Tiger Cat II
Length 80"
Width (chute down) 64.5"
Width (chute in transport position) 53""
Height (ROPS up) 66"
Height (ROPS down) 54"
Weight 1,175-1,180 lbs.
