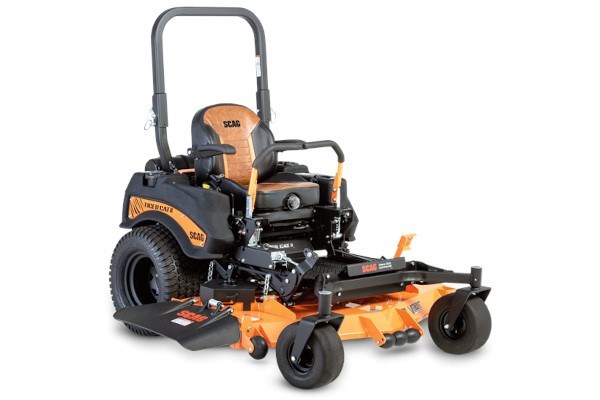

Scag STCII-61V-26FT-EFI

Double tap to zoom



Features

48", 52" OR 61" CUTTING WIDTH

The envy of the industry, Velocity Plus™ decks deliver an amazing quality-of-cut and a wide, even discharge. This deck is equipped with Scag’s ultra-tough cast-iron spindles featuring tapered roller bearings and a top-mounted grease fitting with a relief valve to prevent over-greasing.

STRONG, ADJUSTABLE CLUTCH FOR LONG LIFE

The Ogura GT3.5 PTO Clutch Brake provides excellent starting and stopping power for the cutter deck, 250 ft. lb. of holding strength, and an adjustable air gap for long life.

SOLID DESIGN FOR YEARS OF DEPENDABLE SERVICE

Heavy-duty, single-tube, steel main-frame construction delivers superior strength and ensures years of trouble-free service. The front caster-wheel weldments are replaceable.

SPEEDS UP TO 12 MPH

Dual Hydro-Gear pumps (12 cc) and Parker wheel motors (14.5 ci) deliver dependable power. Pump shock valves ensure reliability and long life. Cooling fans help maintain safe operating temperatures.

MORE UPTIME

Flip-up access panels, an unrestricted engine compartment, easy-to-reach grease zerks and many more features make servicing the Tiger Cat® simple, so you can be in the shop less and on the job more.

RIDE IN COMFORT

Torsion-spring suspension seat adjusts to each operator’s weight to provide superior comfort. Seat features full padding, forward/rearward adjustment, a high back, adjustable armrests and an adjustable back angle. The 4-point, rubber iso-mounting provides even more shock absorption, maximizing your comfort, hour after hour.

KEEP A REAL-TIME "EYE" ON IMPORTANT SYSTEM FUNCTIONS

Depending on the mower model and engine selection, the Tiger Eye™ Advanced Monitoring System monitors a wide variety of systems in real-time, giving you valuable information in just a glance, right from the operator’s seat.

KEEP YOUR DEVICE CHARGED AND READY

12-volt outlet for added convenience allows operators to plug in small accessories or keep their phones at full charge.

BIG POWER, UP TO 32 HP

Choose from a Kawasaki®, Briggs Vanguard™ or Kohler® air-cooled engine; electronic fuel injection (EFI) options are available.

Specifications

MODEL STCII-61V-26FT-EFI
Engine & Deck Combinations 61" Velocity Plus™ Cutter Deck, 26 HP Kawasaki®730FT – electronic fuel injection
GENERAL
Total Fuel Capacity 9.5 gallons
Drive Tires 24" x 9.5"-12" (48" and 52")

24" x 12"-12" (61")
Caster Tires 13" x 6.5"-6", flat-free
Seat 4-point iso-mounted mid-back mounted on operator-suspension platform
DRIVE SYSTEM
Drive System Type Dual Pump and Motor
Pumps Hydro-Gear 12 cc
Motors Parker 14.5 ci
Forward Ground Speed 12 mph
Reverse Ground Speed 5 mph
Parking Brake Foot-operated pedal
DECK
Cutting Widths 48", 52" and 61"
Type Velocity Plus™
Cutting Height 1" to 5" in .25" increments
Deck Lift Adjustable foot-operated pedal
Construction Tri-plate cutter deck constructed of 3 steel plates totaling nearly 1/2" of steel. Reinforcement plates at cutter deck spindles.
Spindles Cast-iron housing with tapered roller bearings.
Blade Engagement Ogura GT3.5 (250 ft lb)

Adjustable air-gap for extended life.
