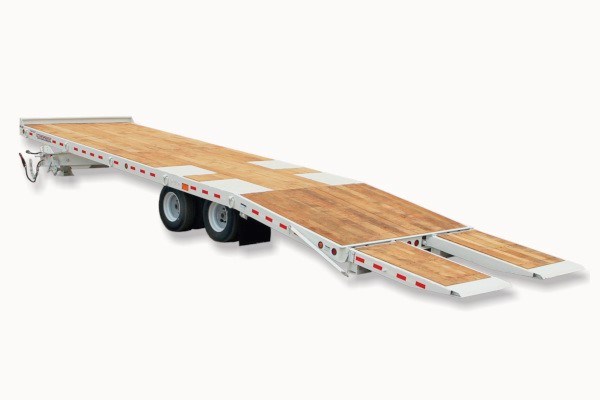

Towmaster Trailers T-40TA
Double tap to zoom
Deck-Over Tilt T-40TA
Towmaster’s® deck-over air-tilt trailers offer convenience and easy loading by tilting the bed using air from the tow vehicle’s system. This provides a clean and efficient way of tilting the deck without the use of hydraulics. Approach ramp is standard, air-lift ramps are optional. Simply tilt the deck, drive on or off and level the deck back down. The tilt deck trailer features a single-lever twin-latch system to secure the deck to the frame. The low load angle allows for easy equipment loading and unloading. - Less
Towmaster’s® deck-over air-tilt trailers offer convenience and easy loading by tilting the bed using air from the tow vehicle’s system. This provides a clean and efficient way of tilting the deck without the use of hydraulics. Approach ramp is standard, air-lift ramps are optional. Simply tilt the deck, drive on or off... + Read More
-
Get a Quote
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
-
Request Brochure
Request Brochure
Fields with asterisks* are required.
-
Send to a Friend
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
-
Payment Calculator
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
-
Share
Features
Standard Features:
- Pintle hitch (adjustable height)
- 2” nominal white oak wood deck
- I-beam frame/tongue (formed)
- 3″ Jr. I-beam Crossmembers
- 34″/36” deck height (empty)
- 102” deck width
- Tilt deck air bags
- Air brakes
- Slipper-spring or Hutchens (model specific)
- Dual-point latch locking system
- Approach Ramp
- LED lights and sealed wiring
Options:
- Gooseneck / Rigid Gooseneck
- Stake pockets
- Additional tie-downs
- 12K elec. winch
- Spare tire and wheel mount
- Spare tire and wheel
- Air ramps
- Color options: Construction Yellow, Equipment Red, Equipment Blue, Equipment Charcoal
- Galvanizing
Specs
| Model | T-40TA |
| Capacity (pounds) | 40,000 |
| GVWR (pounds) | 52,100 |
| GAWR (pounds) | 45,000 |
| Avg. Weight (pounds) | 12,100 |
| Load Width (in) | 102" |
| Deck Height (in) unloaded | 34" |
| Std. Hitch Size (in) | 3" |
| Tongue/Gooseneck Length (ft) | 5'-3" |
| Safety Chain | 1/2 Gr. 70 |
| Parking Jack | 25K |
| Bolted-on Parking Jack | Y |
| Main Beam | W10x26 Beam |
| Deck Type | Deck-Over Tilt |
| Deck Lift | Dual Air Bags |
| Deck Material | White Oak |
| Deck Latch | Dual-Point |
| Ramp | 18" Approach |
| Load Deck Angle (degrees) | 6 |
| Load Beavertail Angle (degrees) | 12 |
| Load Ramp Angle (degrees) | 10 |
| Ramp Hold-Up | Solid-Bar |
| Ramp Spring Assist | N/A |
| Tie Downs | D-ring |
| No. of Tie Downs | 10 |
| Slipper-Spring Susp. | N/A |
| Hutchens 9700 Susp. | S |
| Axle Capacity | 22.5K |
| No. of Axles | 2 |
| Axle Spread (in) | 49" |
| Hubs | Oil Bath |
| Brake Size | 12.25" x 7.5" |
| Electric Brakes | N/A |
| Air Brakes | S |
| Wheels (size) | 17.5" |
| Wheel Bolt Pattern | 8-bolt |
| Tires | 235/75Rx17.5 |
| Tire Load Rating | H |
| Lights | LED |
| Full Warranty | 1 Year |
| Frame Warranty | 10 Year |
