Towmaster Trailers T-70RG
Double tap to zoom

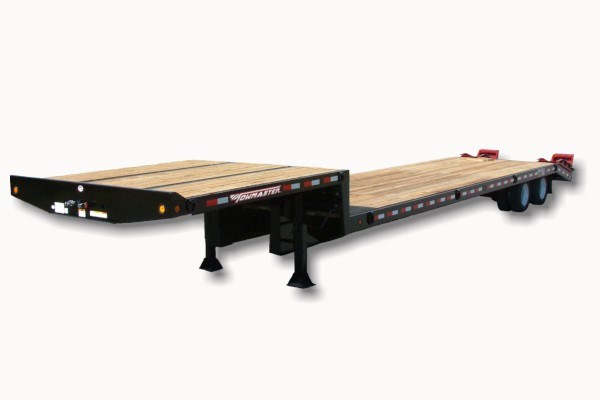

Rigid Gooseneck T-70RG
The Towmaster® T-50RG and T-70RG Rigid Gooseneck trailers are ready to haul your heavy equipment behind your fifth-wheel tractor. They feature dual axles, two-way spring-assist ramps, Hutchens suspension and sealed wiring. A 10-foot top deck can haul a skid-loader or other smaller equipment (optional loading ramps required). A triple axle is available on the T-70RG. Some optional equipment may be shown in photos. - Less
The Towmaster® T-50RG and T-70RG Rigid Gooseneck trailers are ready to haul your heavy equipment behind your fifth-wheel tractor. They feature dual axles, two-way spring-assist ramps, Hutchens suspension and sealed wiring. A 10-foot top deck can haul a skid-loader or other smaller equipment (optional loading ramps req... + Read More
-
Get a Quote
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
-
Request Brochure
Request Brochure
Fields with asterisks* are required.
-
Send to a Friend
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
-
Payment Calculator
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
-
Share
Features
Standard Features:
- Fifth-Wheel King Pin
- 2” nominal white oak wood deck
- I-beam frame
- 3″ Jr. I-beam Crossmembers (T-50RG)
- 6″ I-beam Crossmembers (T-70RG)
- 36” deck height (empty)
- 102” deck width
- 10′ top deck
- Air brakes
- Hutchens 9700 suspension
- Angle-iron beavertail
- Angle-iron cleat ramps
- Two-way spring-assist ramps
Options:
- Sloped gooseneck
- Additional deck length
- Additional tie-downs
- 12K electric winch
- Third axle on T-70RG
- Spare tire and wheel mount
- Spare tire and wheel
- Double-break beavertail on T-50RG
- Several beavertail and ramp options
- Color options: Construction Yellow, Equipment Red, Equipment Blue, Equipment Charcoal
Specs
| Model | T-70RG |
| Capacity (pounds) | 70,000 |
| GVWR (pounds) | 85,600 |
| GAWR (pounds) | N/A |
| Avg. Weight (pounds) | 15,600 |
| Load Width (in) | 102" |
| Deck Height (in) unloaded | 37" |
| Std. Hitch Size (in) | SAE King Pin |
| Tongue/Gooseneck Length (ft) | 10'-0" |
| Safety Chain | N/A |
| Parking Jack | 25K |
| Bolted-on Parking Jack | Y |
| Main Beam | Manufactured |
| Deck Type | Deck-Over |
| Deck Safety Lip | N |
| Deck Material | White Oak |
| Added Stationary Deck | N/A |
| Ramp Size (ft x in) | 5'-0"x21" |
| Load Angle (degrees) | 18 |
| Dump Angle | N/A |
| Beavertail | 4'-0" |
| Ramp Hold-Up | N/A |
| Ramp Spring Assist (off deck) | Std. |
| Ramp Spring Assist (off ground) | Std. |
| Tie Downs | D-ring |
| No. of Tie Downs | 12 |
| Axle Capacity | 22.5K |
| No. of Axles | 2 |
| Axle Spread (in) | 49" |
| Hubs | Oil Bath |
| Brake Size | 12.25" x 7.5" |
| Electric Brakes | N/A |
| Air Brakes | Std. |
| Wheels (size) | 17.5" |
| Wheel Bolt Pattern | 8-bolt |
| Tires | 235/75Rx17.5 |
| Tire Load Rating | H |
| Lights | LED |
| Full Warranty | 1 Year |
| Frame Warranty | 5 Year |
