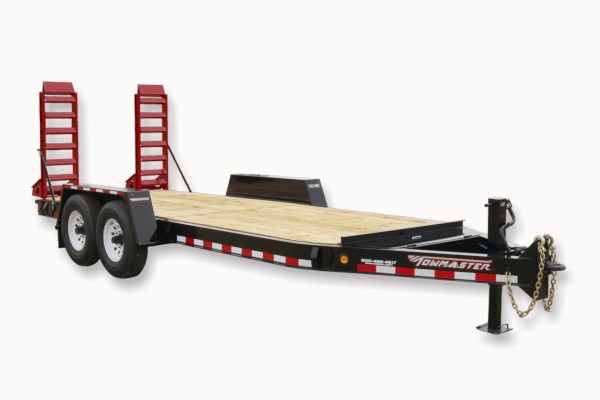

Towmaster Trailers TC-12D
Double tap to zoom
Drop-Deck TC-12D
The Towmaster® TC provides the perfect value combining the features you need with the quality a Towmaster built trailer offers. This model works well for skid-loaders, mini-excavators and other small equipment and makes a great economical investment. The TC drop-deck is built on a solid cold-formed one-piece I-beam frame with 3-inch I-beam crossmembers and treated pine wood deck. It includes Dexter® Torflex® rubber torsion axles for a smooth ride, bolt-on parking jack, and solid-bar ramp hold-ups. - Less
The Towmaster® TC provides the perfect value combining the features you need with the quality a Towmaster built trailer offers. This model works well for skid-loaders, mini-excavators and other small equipment and makes a great economical investment. The TC drop-deck is built on a solid cold-formed one-piece I-beam fra... + Read More
-
Get a Quote
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
-
Request Brochure
Request Brochure
Fields with asterisks* are required.
-
Send to a Friend
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
-
Payment Calculator
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
-
Share
Features
Standard Features:
- Pintle hitch (adjustable height)
- Battery break-away with tow charger
- 2” nominal treated pine wood deck
- 6” I-beam frame/tongue (formed)
- 3″ Jr-Ibeam Crossmembers
- 24” deck height (empty)
- 82” between fenders
- Rubber torsion axles
- Heavy-duty Towmaster fenders
- Ladder-style ramps
- Solid bar ramp hold-ups
- LED lights
Options:
- Hydraulic surge brakes
- 3” pintle ring or 2-5/16” ball coupler
- A-frame Gooseneck
- 12K parking jack
- Storage tray lid
- Pallet fork holders
- 8K electric winch
- Additional tie-downs
- D-ring tie-downs
- 3 ft. beavertail (comes with 4 ft. ramps)
- E-Z Lube hubs (TC-14D)
- Spare tire and wheel mount
- Spare tire and wheel
- Ramp lift springs
- Auto-Latch ramp hold-ups
- Several ramp options available
- Color options: Construction Yellow, Equipment Red, Equipment Blue, Equipment Charcoal
Specs
Specification | TC-12D |
Capacity (pounds) | 12,000 |
GVWR (pounds) | 14,600 |
GAWR (pounds) | 12,000 |
Avg. Weight (pounds) | 2,600 |
Load Width (in) | 82" |
Deck Height (in) unloaded | 22" |
Std. Hitch Size (in) | 2.5" |
Tongue/Gooseneck Length (ft) | 5'-0" |
Safety Chain | 3/8 Gr. 43 |
Parking Jack | 7K |
Bolted-on Parking Jack | Y |
Main Beam | 6" I-Beam |
Deck Type | Drop-Deck |
Deck Safety Lip | N |
Deck Material | Treated Pine |
Added Stationary Deck | N/A |
Ramp Size (ft x in) | 5'-0"x18" |
Load Angle (degrees) | 17 |
Dump Angle | N/A |
Beavertail | O |
Ramp Hold-Up | Solid Bar |
Ramp Spring Assist (off deck) | N/A |
Ramp Spring Assist (off ground) | O |
Tie Downs | Formed |
No. of Tie Downs | 8 |
Axle Capacity | 6K |
No. of Axles | 2 |
Axle Spread (in) | 34" |
Hubs | Std. |
Brake Size | 12" x 2" |
Electric Brakes | Std. |
Air Brakes | N/A |
Wheels (size) | 16" |
Wheel Bolt Pattern | 6-bolt |
Tires | 235/85Rx16 |
Tire Load Rating | E |
Lights | LED |
Full Warranty | 1 Year |
Frame Warranty | 10 Year |
