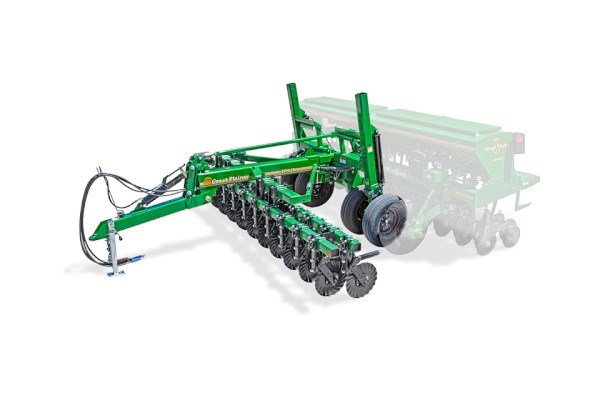

Great Plains PH-20 / NOT AVAILABLE
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Features
CENTER PIVOT DESIGN
This design features a pivot halfway between the rigid 450 lb. preloaded coulter and double disc opener. It works like an articulated 4-wheel drive tractor—the rear opener track follows the front coulter track perfectly! No drifting on side hills, no cutting corners on curves. Just perfect tracking and seed placement, all the time.
ROCKSHAFT DESIGN
The rockshaft lift gives this unit plenty of lift capacity to pick up a full planting unit plus 400 gallons of on-board fertilizer. The dual 12.5L tires are designed to straddle 30" rows. Automatic pivot locks engage when fully raised to the transport position.
WEIGHT TRANSFER/BUILT-IN WEIGHT BRACKET (CPH & PFH)
Up to 3,250 lbs. can be transferred hydraulically from the tractor to the coulter bar to ensure consistent, proper coulter depth. If more weight is needed, add up to 2,000 lbs. to the built-in mainframe weight bracket.
COULTER CHOICES (CPH & PFH)
Choose between a wide ¾" wavy blade, a 5/8" Turbo coulter blade that is aggressive and prepares a mini seedbed ahead of the opener, or a 5/16" fluted coulter blade that penetrates easily (CPH).
FERTILIZER TINES (PFH)
Spring steel fertilizer tines with stainless steel nozzles run directly behind the coulters for excellent placement of liquid fertilizer.
PIVOT STABILIZER (CPH & PFH)
Shock absorbers mounted at the pivot between the tongue and frame stabilize the hitch, creating smooth field turns that reduce wear and improving the seed placement consistency of the attached drill or planter.
| Model Name | PH-20 | PFH-20 |
| Row Spacing | 6", 7.5", 8", 10", 15", TR30" (15, 19, 20, 38, TR76) |
| Number of Coulters | 40, 32, 30, 24, 16, 16 |
| Hitch Category | II |
| Weight | 6,175-9,125 (2,801-4,139kg) |
| Working Width | 20' (6.10m) |
| Transport Width | 20' (6.10m) |
| Height | 7' 5" w/tanks (2.26m) |
| Length | 12' 2" (3.71m) |
| Fertilizer Capacity (opt) | 400 gal. (1,514L) |
| Tire Size | 11L x 15" |
| Coulter Depth | 0 to 6" (0-15cm) |
| Coulter Preload | 450 lbs. (204kg) |
| Markers | Optional |
| Hydraulic Weight Transfer | Standard |
| Center Pivot Design | Standard |
| Piston Pump Rates | 5 to 80 GPM (19 to 303 LPM) |
