Rhino DHP10

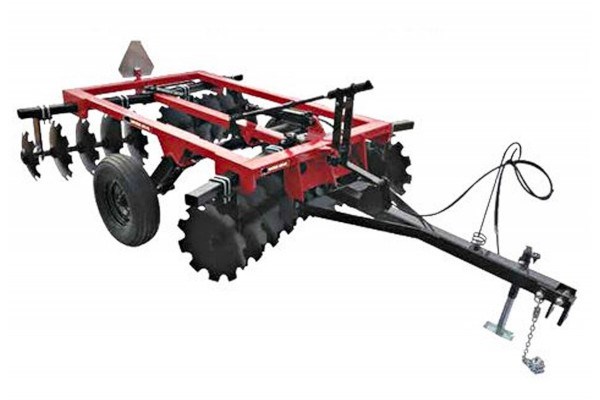

Model Photo

Triple-lip, sealed ball bearings, ensure long life!

Our Pull-Type Compact Disc Harrows come equipped with a pull-type hitch with a clevis and hole for a 1 ¼” pin. These harrows are ready to work with any tractor with 40 to 100 horsepower, and can cultivate areas from 8 ½ to 12’ wide. Each harrow has from 8 to 12 greaseable, triple-lip, sealed ball bearings ensure that maintenance is few and far between. These harrows run notched discs at 20 to 22”. Our Pull-Type Compact Disc Harrows are ready for almost any job you can throw at them!



  • Get a Quote
  • Send to a Friend
  • Payment Calculator
  • Get A Quote

    Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

    Send To A Friend

    Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

    Loan Calculator

    Use the Loan Calculator to help you determine the financing and payment options that are best for you.

    Amount Financed ($)
    Interest Rate (%)
    Loan Term in Months
    Monthly Payment Calculated

    **The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.



Features

  • Clevis & Hole Style Hitches for Reliable, Low Maintenance, Quick Hitching.
  • Greaseable, Triple-Lip, Sealed Ball Bearings, ensure long life!
  • Optional 20 or 22” Blades for Jobs of any Size!
  • Several Horsepower Options to Fit Farms of any Size!
ModelDHP10
Tractor Drawbar HP45-100
Hitch TypePull-Type with Clevis and Hole for 1¼'' Pin
Approx. Transport Width10'-10''
Max Cultivation Width10'-6''
Main Frame Width93.5''
Approx. Weight Per Disc (lbs)84-98
Disc Blade Size & Type20'' or 22'' Notched
Disc Spacing7.5'', 9'', or Combination
Disc Bearing TypeGreaseable Triple-Lip Sealed Ball Bearing
Number of Bearings12
Forward Gang Angle Adjustment15°, 16.5°, 18°, 19.5°, 21°
Rear Gang Angle Adjustment12°, 13.5°, 15°, 16.5°, 18°
Hitch Frame Construction4'' x 4'' x ¼'' Tubing
Slide Frame Construction4'' x 4'' x ¼'' Tubing
Gang Arm Construction4'' x 4'' x ¼'' Tubing
Gang Axles1⅛''-Square High-Carbon Steel
Front to Rear Leveling SystemManual Crank Adjustment
Depth ControlHydraulic Cylinder (3½'' x 8'' ASABE)
Transport Tires & Wheels(2)-9.5L x 15 w/5-Bolt Wheels
Parking JackStandard
OptionsDisc Scrapers, Dual-Transport Wheel Kit
