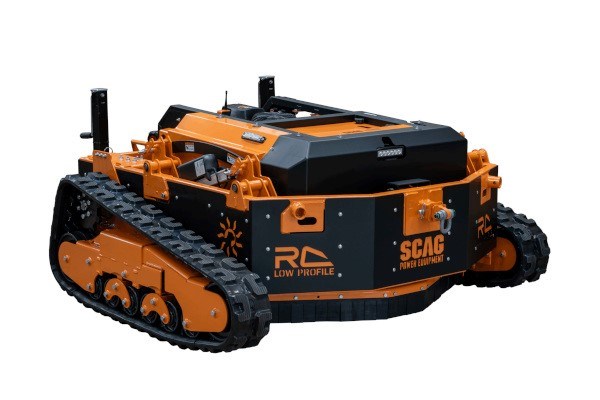

Scag SRC-52D-27CX-EFI
70" Briggs & Stratton® CXi Series™
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Features
Control Your Path
Chew up the competition
Our exclusive PATENT PENDING 52” four bladed “Diamond” cutter deck provides effective and efficient cutting both forward and reverse. No need to make unnecessary turns at the end of your swipe…just simply reverse the machine backwards saving you precious time and money. Based on our testing we’ve found potential time savings of up to 30-50% depending on mowing conditions due to eliminating the need to do a 180° turn at the end of each pass.
Our rugged construction punishes tall grass, thick weeds, and even heavy brush up to 1.5” in diameter with a wide range of cutting height adjustment from 3.5” to 11.5”.
Strength you can trust
Powerful Winch
Got yourself stuck far off the beaten path? No need to call for help. Machine comes standard with a powerful winch, capable of pulling up to 4,500 lbs. with 50’ of rope all with the use of your cell phone. Simply download the Warn Hub app to pair to winch and you have complete control. Find the nearest anchoring object to attach to and pull yourself out getting you back up and running quickly
Quick Connect
Heavy Duty Jack Stands
Two onboard heavy duty jack stands to aid in the event of track derailment. Allows operator to quickly lift machine out in the field to re-install track. This modular quick connect design allows jack stands to be mounted on all four corners of machine frame with a simple push/pull locking pin.
Hybrid Power
Gas / Electric
9kWh total battery power. A 7kW alternator is powered by a 27hp Briggs & Stratton CXi EFI/ ETC engine, which only runs when needed to recharge the batteries. The all electric drive system and deck motors delivers dependable power via 9kWH battery power – not the engine. Electric drive system provides superior remote controlled drivability compared to hydraulic. Ultimately this true full hybrid system provides all-day power with superior drivability performance, increased fuel economy with lower emissions reducing overall running costs.
Easy to use remote
Safe Operation
Our easy to use remote control has a remote connectivity of over 1,000 feet or line of sight with machine. Remote features an internal rechargeable battery to provide more than 10 hours of operation. Also includes display for viewing machine status i.e. battery state of charge, deck height, engine state, blade status, generic faults, ect. In the event an operator drops the controller during operation of machine the free fall enable setting will e-stop the machine safely.
Front and Rear LED Work Lights
Light up the Night!
Standard 48V LED work lights on front and back of machine provide crisp, clear light for transporting in low-light conditions.
Ease of track installation
Track Split Cog
Unique split cog design allows for easy track installation. No more hassle trying to line up all six bolt holes of over drive lugs with single cog design. Simply place one of the split cogs over three drive lugs, rotate drive motor 180 degrees, and place final split cog over remaining three drive lugs.
Quick Track Tension
Grease Track Tensioner
Forget about the old fashioned threaded rod tensioning system. Galling of threads, stripping of bolt heads due to extreme force, and tedious locking plates are things of the past. Turn what was a 5 minute job into 5 seconds! Grease tensioning system is the way to go with way less moving parts, and by far outperforms threaded rod tensioning systems under intense pressure. All it takes is 3-5 pumps of grease and you are ready to tackle the toughest terrains!
| Model | SRC-52D-27CX-EFI |
| Tracking Width | 70″ |
| Engine | Briggs & Stratton® CXi Series™ |
| Horsepower | 27 |
| Product Dimensions* | |
| Length | 75.4″ |
| Width | 70″ |
| Height | 32.5″ |
| Weight (no fuel) | 2400 lbs |
| DRIVE SYSTEM | |
| Drive System | Electric Drive (No PTO) |
| Type | OMNI |
| Drive Wheel Motors | OMNI |
| Productive Speed Range | Up to 3.0 mph |
| Degree of Slope | Hybrid operation up to 25-degree incline; electric-only operation beyond 25-degrees |
| Steering/Travel Control | Easy-to-use remote control |
| BATTERY | |
| Battery | ALLIANCE I48-3.0 |
| Number of Batteries on Machine | 3 (fixed to machine) |
| Total Battery Wattage | 9kWh |
| Productivity | Batteries power the machine from 100-20% for approximately 1.5hrs after which the alternator generates power using the 37hp Vanguard engine to charge the batteries and run the machine. |
| CHARGING | |
| Charge Time - Wall Charger | 100% in about 5hrs |
| Charging Time - Alternator | Charges up to 90% in 5-6hrs via alternator (dependent on cutting conditions) |
| REMOTE CONTROL | |
| Signal Range | 1000 ft or line of sight (E-Stop on Signal loss) |
| Remote Battery Life | 10 hours |
| Remote Charge Time | 2 hours |
| DECK | |
| Cutting Widths | 52″ |
| Electric Cutting Height Adjustment | 3.5″ to 11.5″ |
| Thickness of brush | Clearing heavy brush up to 1.5" in diameter |
