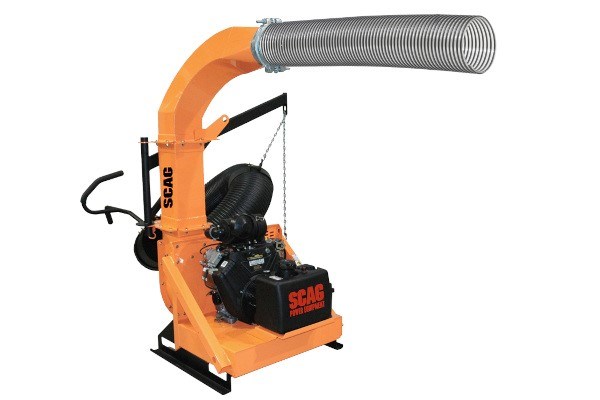

Scag TLS20W-29BV
BUILT TO WORK
Powered by a 29 hp Vanguard® Big Block gasoline, V-twin engine, nothing escapes the Industrial Skid-Mount and its unmatched strength. With safe and convenient transportation features and a high-capacity fuel tank, this machine is built to optimize the productivity of your operation by sticking around for the long haul.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Features
4-Blade Impeller
FABRICATED AND BALANCED, 20-INCH, 4-BLADE IMPELLER
Within the unit’s 7.5″-wide housing is a welded-steel impeller with 3/8″-thick steel blades. Dynamically balanced for reduced vibration, longer life and less stress on the engine, these loaders boast an effective, high-output (up to 4,680 CFM), debris-reducing design.
Smart Construction and Convenient Serviceability
EASY ACCESS FOR WEAR PLATE AND IMPELLER SERVICE
1/4″-thick, bolt-in, replaceable wear liner extends service life. Removable rear-housing cover allows easy access to impeller and wear plates.
Locking Boom Arm and Intake Nozzle
SAFE AND CONVENIENT TRANSPORT
Transport lock safely secures the boom arm and hose when not in use; nylon bearing delivers smooth movement. A transport pin locks the nozzle to the loader to help protect the hose during transportation. Quick-detach hose also allows for quick and easy transport, storage and cleaning.
Ambidextrous Nozzle Handle
EASY HANDLING FROM EITHER SIDE: THE CHOICE IS YOURS
Padded, large-diameter handle is designed for increased leverage and easy maneuverability.
12" Steel Intake Nozzle
TAKE IT ALL IN
Large, replaceable intake nozzle is beveled to make debris pickup easy.
Skid-Mount
STANDARD 4" SKID RISERS
Four-inch skid risers with fork pockets have multiple install points to fit a wider variety of applications, or they can be completely removed.
Large-Capacity Fuel Tank With Built-In Gauge
HOURS AND HOURS OF RUN TIME
High-capacity, 5.5-gallon, plastic fuel tank with large filler neck for easy filling keeps you on the job. Built-in fuel gauge adds convenience and eliminates guesswork.
Powerful Engine
29 HP VANGUARD BIG BLOCK
Powered by a 29 hp Vanguard® BIG BLOCK gasoline, V-twin engine with electric start.
| Product Specification | Industrial Skid-Mount |
| Model | TLS20W-29BV |
| Engine | Briggs & Stratton® Vanguard® BIG BLOCK™, V-Twin, electric start |
| HP* | 29 |
| Fuel Capacity / Tank | 5.5 gallons - plastic tank with built-in fuel gauge |
| CFM Output | 4,680 |
| Frame Construction | All-steel, welded |
| Impeller Construction | 4-blade, 3/8″-thick blades, all-steel, welded |
| Impeller Mounting | Tapered locking hub |
| Impeller Diameter / Width | 20″ / 6.5″ |
| Blower Housing Construction | Removable back panel for easy impeller and wear plate access |
| Blower Housing Width | 7.5″ |
| Blower Housing Wear Plates | Standard: 1/4″-steel, replaceable |
| Hose Specifications | 120″ length, 12″-diameter intake hose, 0.045 black thermoplastic rubber, wire helix with wearstrip |
| Unit Mounting | 4″ steel skid risers |
| Discharge Tube | Clear thermoplastic, 8″ diameter |
| Throttle Control | Commercial-grade, all-steel mechanicals, plastic debris cover |
| Highway Ready | n/a |
| Axle | n/a |
| Tires | n/a |
| Trailer Width | n/a |
| Height | 75″ (without skid mount attached) |
| Weight | 675 lb |
