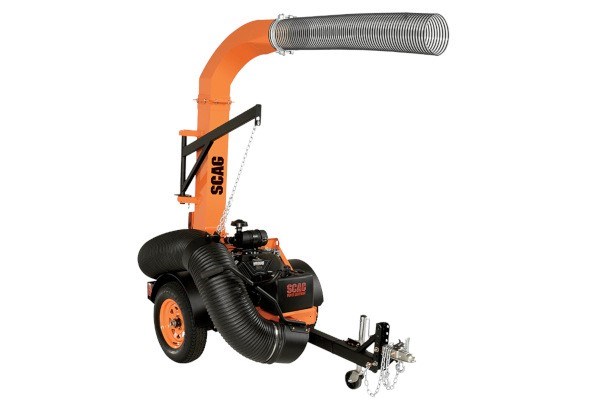

Scag TL20W-26CH-EFI
NEVER BACK DOWN
Featuring two engine options and a two-year warranty, the Scag® Tow-Behind Truck Loader delivers peace of mind for operators that need a machine that can keep up with them. Designed firstmost with durability in mind, the Tow-Behind Truck Loader can handle whatever a job throws at it. Simply put, this machine is built to keep going and going.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Features
4-Blade Impeller
FABRICATED AND BALANCED, 20-INCH, 4-BLADE IMPELLER
Within the unit’s 7.5″-wide housing is a welded-steel impeller with 3/8″-thick steel blades. Dynamically balanced for reduced vibration, longer life and less stress on the engine, these loaders boast an effective, high-output (up to 4,680 CFM), debris-reducing design.
Smart Construction and Convenient Serviceability
EASY ACCESS FOR WEAR PLATE AND IMPELLER SERVICE
1/4″-thick, bolt-in, replaceable wear liner extends service life. Removable rear-housing cover allows easy access to impeller and wear plates.
Locking Boom Arm and Intake Nozzle
SAFE AND CONVENIENT TRANSPORT
Transport lock safely secures the boom arm and hose when not in use; nylon bearing delivers smooth movement. A transport pin locks the nozzle to the loader to help protect the hose during transportation.
Ambidextrous Nozzle Handle
EASY HANDLING FROM EITHER SIDE: THE CHOICE IS YOURS
Padded, large-diameter handle is designed for increased leverage and easy maneuverability.
12" Steel Intake Nozzle
TAKE IT ALL IN
Large, replaceable intake nozzle is beveled to make debris pickup easy.
Adjustable Tongue and Hitch
FIT TO YOUR TRUCK – LONG OR SHORT, HIGH OR LOW
Choose from three different tongue lengths to best fit your specific application. A height-adjustable hitch gives the best fit to your truck. Standard 2″ ball coupler will also accept a 2 5/16″ ball or pintle hitch.
Built-In Tool Holder
KEEP YOUR RAKES, BROOMS AND SHOVELS WITHIN EASY REACH
Built-in, 3-hole tool holder with rubber rings protects handles from damage.
Large-Capacity Fuel Tank With Built-In Gauge
HOURS AND HOURS OF RUN TIME
High-capacity, 5.5-gallon, plastic fuel tank with large filler neck for easy filling keeps you on the job. Built-in fuel gauge adds convenience and eliminates guesswork.
Powerful Engine Options
HUGE POWER, UP TO 29 HP
Choose from a 26.5 hp Kohler® Command PRO® EFI or a 29 hp Vanguard® BIG BLOCK™ gasoline engine.
| Model | TL20W-26CH-EFI |
| Engine | Kohler® Command PRO® EFI, V-Twin, electric start |
| HP* | 26.5 |
| Fuel Capacity / Tank | 5.5 gallons - plastic tank with built-in fuel gauge |
| CFM Output | 4,680 |
| Frame Construction | All-steel, welded |
| Impeller Construction | 4-blade, 3/8"-thick blades, all-steel, welded |
| Impeller Mounting | Tapered locking hub |
| Impeller Diameter / Width | 20" / 6.5" |
| Blower Housing Construction | Removable back panel for easy impeller and wear plate access |
| Blower Housing Width | 7.5" |
| Blower Housing Wear Plates | Standard: 1/4"-steel, replaceable |
| Intake Hose Specifications | 120" length, 12"-diameter intake hose, 0.045 blue thermoplastic rubber, wire helix with wearstrip |
| Unit Mounting | Hitch: Class III minimum |
| Discharge Tube | Clear thermoplastic, 8" diameter, 60" length |
| Throttle Control | Commercial-grade, all-steel mechanicals, plastic debris cover |
| Highway Ready** | Yes - optional roadside package |
| Axle | Heavy-duty Dexter Torflex® axle (2,000 lb) |
| Tires | 205 / 75 R15 highway tires with steel wheels |
| Trailer Width | 53.5" |
| Accessories | Light Kit, Roadside Kit |
| Height | 110" |
| Weight | 990 lb |
