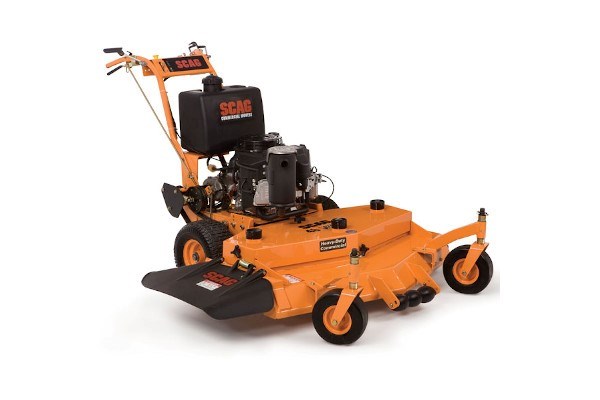

Scag SW-52V-15FS
52" Kawasaki® FS Series
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Features
The envy of the neighborhood
32", 36", 48" OR 52" CUTTING WIDTH
The envy of the industry, Velocity Plus™ decks (48″, 52″ and 61″ widths) deliver an amazing quality-of-cut and a wide, even discharge. Advantage Cutter Deck options (32″ and 36″) are also available.
Ogura PTO Clutch Brake
STRONG, ADJUSTABLE CLUTCH FOR LONG LIFE
Provides excellent starting and stopping power for the cutter deck and an adjustable air gap for long life.
Heavy-Duty Construction
SOLID DESIGN FOR YEARS OF DEPENDABLE SERVICE
Full commercial-grade construction ensures years of productive use.
5-Speed Peerless Transmission
SPEEDS UP TO 6 MPH
Five-speed Peerless transmission features nine-spline coupler shafts for durability and a wide selection of forward ground speeds.
Twin Drive Belts
RELIABLE DRIVE POWER
Twin power belts provide double friction to pulley surfaces and reduce slipping in wet conditions.
Ease of Maintenance
MORE UPTIME
Easy-access mower design, an unrestricted engine area and easy-to-reach grease Zerks make servicing the SW simple, so you can be in the shop less and on the job more.
Proven "Pistol" Grips
EZ-GRIP DESIGN
Spring-assisted EZ-Grip design reduces hand force required to operate drive controls for maximum operator comfort and simple machine operation.
Adjustable Handlebars
3 POSITIONS TO ACCOMMODATE ALL OPERATORS
Handlebars adjust to three (3) different positions to enhance operator comfort.
Powerful and Efficient Engine Options
RELIABLE POWER, UP TO 15 HP
Proven and dependable 14 hp or 15 hp Kawasaki® FS V-twin engine delivers efficient power.
| Model | SW-52V-15FS |
| Deck Width | 52" |
| Engine | Kawasaki® FS Series |
| Horsepower | 15 |
| Product Dimensions | |
| Length | 76" |
| Width (chute down) | 64.5" |
| Width (chute in transport position) | 53" |
| Weight | 535 lb |
| GENERAL | |
| Total Fuel Capacity | 5.5 gallons |
| Drive Tires | 13" x 5"-6" (32") 13" x 6.5"-6" (36", 48" and 52") |
| Caster Tires | 9" x 3.5" |
| Seat | n/a |
| DRIVE SYSTEM | |
| Drive System Type | Belt Drive with 5-Speed Peerless Transmission |
| Pumps | n/a |
| Motors | n/a |
| Forward Ground Speed | Up to 6 mph |
| Reverse Ground Speed | 2 mph |
| Parking Brake | Hand lever |
| DECK | |
| Cutting Widths | 32", 36", 48" and 52" |
| Type | Standard (32") Advantage (36") Velocity Plus™ (48" and 52") |
| Cutting Height | 1.75" to 4.5" in .25" increments |
| Deck Lift | Adjustable via spacers |
| Construction | Tri-plate cutter deck constructed of 3 steel plates totaling nearly 1/2" of steel. Reinforcement plates at cutter deck spindles. 32" model features dual-plate. |
| Spindles | Cast-iron housing with tapered roller bearings. |
| Blade Engagement | Five-speed Peerless transmission |
