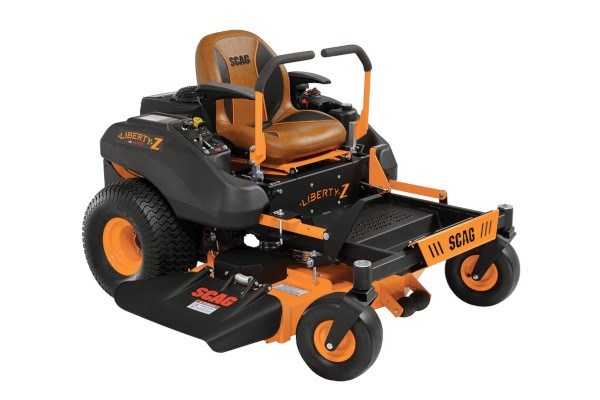

Scag SZL-36H-18FR
36" Kawasaki® FR Series
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Features
Ogura PTO Clutch Brake
STRONG, ADJUSTABLE CLUTCH FOR LONG LIFE
The Ogura GT1 PTO Clutch Brake provides excellent starting and stopping power for the cutter deck, 74 ft. lb. of holding strength, and an adjustable air gap for long life.
Command perfection
DEEP, FABRICATED, AND WELDED CUTTER DECKS
Heavy-duty Hero Cutter Deck design and construction yield an excellent quality-of-cut. Deep design handles lots of grass at higher speeds. Heavy-duty, aluminum, sealed ball bearing, blade-drive spindles provide reliable performance season after season.
High-Strength Steel Frame
SOLID DESIGN FOR YEARS OF DEPENDABLE SERVICE
Tubular-steel main frame delivers unmatched strength and longevity.
Low-Maintenance Mower Design
MORE UPTIME
Fewer grease points increase operator convenience and ease-of-ownership.
Proven Transaxles
SPEEDS UP TO 7 MPH
The ZT drive systems’ dual hydro transaxles with all-metal gears and spin-on oil filters deliver smooth, solid power to the drive wheels (36″, 42″, 52″ and 61″ models). The 48″ model features proven Tuff Torq transaxles.
Contoured, Bolstered, High-Back Seat
RIDE IN COMFORT
This ultra-comfortable and adjustable (with tools) and contoured for improved comfort, and features armrests.
Easy Foot-Pedal Deck Lift
EASY UP, EASY DOWN
Foot-pedal cutter-deck lift is spring-assisted and makes raising the cutter deck smooth and easy.
Powerful and Efficient Engine Options
RELIABLE POWER, UP TO 24 HP
Choose from a Kawasaki® FR or Kohler® 7000 Series engine.
| Model | SZL-36H-18FR |
| Deck Width | 36 |
| Engine | Kawasaki® FR Series |
| Horsepower | 18 |
| Product Dimensions | |
| Length | 68.5" |
| Width (chute down) | 48.5" |
| Width (chute in transport position) | 37" |
| Height | 40" |
| Weight | 555 lb |
| GENERAL | |
| Total Fuel Capacity | 3.5 gallons (36" and 42") 5.5 gallons (48", 52" and 61") |
| Drive Tires | 20" x 8"-10" (36") 20" x 10"-8" (42", 48" and 52") 20" x 10"-10" (61") |
| Caster Tires | 11" x 4"-5" (36" and 42") 11" x 6"-5" (48", 52" and 61") |
| Seat | Padded with arm rests, adjustment forward and back (tools required) (no armrests on 36" and 42" models) |
| DRIVE SYSTEM | |
| Drive System Type | Hydro-Gear ZT2800 Transaxle (36", 42" and 52") Tuff Torq TZ450 Transaxle (48") Hydro-Gear ZT3100 Transaxle (61") |
| Pumps | Internal Pump: 10 cc |
| Motors | Internal Motor: 10cc (Tuff Torq), 16 cc (Hydro-Gear) |
| Forward Ground Speed | 7 mph |
| Reverse Ground Speed | 5 mph |
| Parking Brake | Hand lever |
| DECK | |
| Cutting Widths | 36", 42", 48", 52" and 61" |
| Type | Heavy-Duty Hero Cutter Deck |
| Cutting Height | 1.5" to 4.5" in .25" increments |
| Deck Lift | Foot-operated pedal |
| Construction | Dual-plate cutter deck constructed of 2 steel plates. Reinforcement plate at cutter deck spindles. |
| Spindles | Aluminum housing with sealed ball bearings. |
| Blade Engagement | Ogura GT1 (74 ft lb) - (36", 42", 48" and 52") Ogura GT2 (108 ft lb) - (61") Adjustable air-gap for extended life. |
