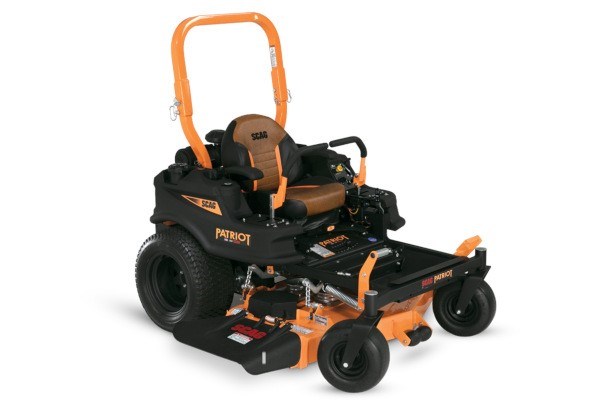

Scag SPZ-61H-25ZT
61" Kohler® Confidant
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Features
Ogura PTO Clutch Brake
STRONG, ADJUSTABLE CLUTCH FOR LONG LIFE
The Ogura GT2 PTO Clutch Brake provides excellent starting and stopping power for the cutter deck, 108 ft. lb. of holding strength, and an adjustable air gap for long life.
Command perfection
DEEP, FABRICATED, AND WELDED CUTTER DECKS
Heavy-duty Hero Cutter Deck design and construction yield an excellent quality-of-cut. Deep design handles lots of grass at higher speeds. Heavy-duty, aluminum, sealed ball bearing, blade-drive spindles provide reliable performance season after season.
High-Strength Steel Frame
SOLID DESIGN FOR YEARS OF DEPENDABLE SERVICE
Tubular-steel main frame delivers unmatched strength and longevity.
Hydro-Gear ZT-3100 / ZT-3400 Transaxles
SPEEDS UP TO 10 MPH (SPZ61) / 8.5 MPH (SPZ52)
The ZT drive systems’ dual hydro transaxles with all-metal gears and spin-on oil filters deliver smooth, solid power to the drive wheels. Large cooling fans keep temperatures low and extend component life.
Low-Maintenance Mower Design
MORE UPTIME
Fewer grease points increase operator convenience and ease-of-ownership.
Suspension Seat
RIDE IN COMFORT
The torsion-spring suspension seat adjusts to each operator’s weight, is contoured and features armrests, all to provide superior comfort.
Iso-Mounted Footplate
CRANK UP THE COMFORT
Pierced, extruded-steel footplate is rubber iso-mounted for enhanced comfort.
Foot-Pedal Parking Brake
STAY IN CONTROL
Foot-operated parking brake activates a disc-brake system, allowing the parking brake to be engaged without taking your hands off of the steering controls. Ausco disc brakes provide reliable performance.
Powerful and Efficient Engine Options
RELIABLE POWER, UP TO 26 HP
Choose from a Briggs Vanguard™, Kawasaki® FX or a Kohler® Command PRO® air-cooled, V-twin engine.
| Model | SPZ-61H-25ZT |
| Deck Width | 61" |
| Engine | Kohler® Confidant |
| Horsepower | 25 |
| Product Dimensions | |
| Length | 79" |
| Width (chute down) | 73.5" |
| Width (chute in transport position) | 62" |
| Height (ROPS folded) | 47" |
| Height (ROPS up) | 61" |
| Weight | 952-956 lb |
| GENERAL | |
| Total Fuel Capacity | 6.5 gallons |
| Drive Tires | 22" x 10.5"-12" (52") 24" x 12"-12" (61") |
| Caster Tires | 13" x 6.5"-6" |
| Seat | Torsion-spring suspension seat |
| DRIVE SYSTEM | |
| Drive System Type | Hydro-Gear ZT3100 Transaxle (52") Hydro-Gear ZT3400 Transaxle (61") |
| Pumps | ZT3100 Internal Pump: 10 cc (52") ZT3400 Internal Pump: 12 cc (61") |
| Motors | Internal Motor: 16 cc |
| Forward Ground Speed | 8.5 mph (52") 10 mph (61") |
| Reverse Ground Speed | 5 mph |
| Parking Brake | Foot-operated pedal |
| DECK | |
| Cutting Widths | 61" |
| Type | Hero Cutter Deck |
| Cutting Height | 1.5" to 5" in .25" increments |
| Deck Lift | Foot-operated pedal |
| Construction | Dual-plate cutter deck constructed of 2 steel plates. Reinforcement plate at cutter deck spindles. |
| Spindles | Aluminum housing with sealed ball bearings. |
| Blade Engagement | Ogura GT2 (108 ft lb) Adjustable air-gap for extended life. |
