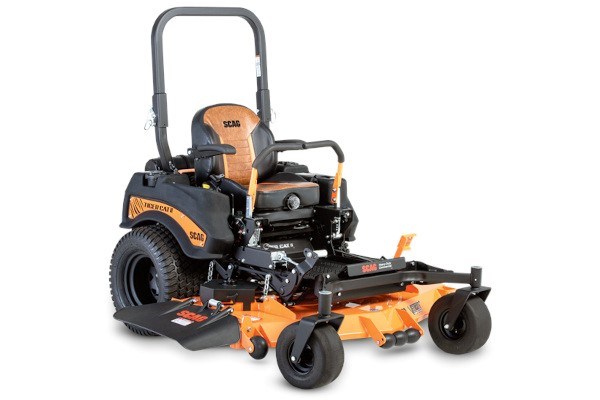

Scag STCII-48V-22FX (Blackout Edition)
48" Kawasaki® FX Series
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Features
The envy of the neighborhood
48", 52" OR 61" CUTTING WIDTH
The envy of the industry, Velocity Plus™ decks deliver an amazing quality-of-cut and a wide, even discharge. This deck is equipped with Scag’s ultra-tough cast-iron spindles featuring tapered roller bearings and a top-mounted grease fitting with a relief valve to prevent over-greasing.
Ogura PTO Clutch Brake
STRONG, ADJUSTABLE CLUTCH FOR LONG LIFE
The Ogura GT3.5 PTO Clutch Brake provides excellent starting and stopping power for the cutter deck, 250 ft. lb. of holding strength, and an adjustable air gap for long life.
High-Strength Steel Frame
SOLID DESIGN FOR YEARS OF DEPENDABLE SERVICE
Heavy-duty, single-tube, steel main-frame construction delivers superior strength and ensures years of trouble-free service. The front caster-wheel weldments are replaceable.
Industrial-Grade Hydraulic System
SPEEDS UP TO 12 MPH
Dual Hydro-Gear pumps (12 cc) and Parker wheel motors (14.5 ci) deliver dependable power. Pump shock valves ensure reliability and long life. Cooling fans help maintain safe operating temperatures.
Ease of Maintenance
MORE UPTIME
Flip-up access panels, an unrestricted engine compartment, easy-to-reach grease zerks and many more features make servicing the Tiger Cat® simple, so you can be in the shop less and on the job more.
Suspension Seat
RIDE IN COMFORT
Torsion-spring suspension seat adjusts to each operator’s weight to provide superior comfort. Seat features full padding, forward/rearward adjustment, a high back, adjustable armrests and an adjustable back angle. The 4-point, rubber iso-mounting provides even more shock absorption, maximizing your comfort, hour after hour.
Tiger Eye Advanced Monitoring System
KEEP A REAL-TIME "EYE" ON IMPORTANT SYSTEM FUNCTIONS
Depending on the mower model and engine selection, the Tiger Eye™ Advanced Monitoring System monitors a wide variety of systems in real-time, giving you valuable information in just a glance, right from the operator’s seat.
12-Volt Outlet
KEEP YOUR DEVICE CHARGED AND READY
12-volt outlet for added convenience allows operators to plug in small accessories or keep their phones at full charge.
Powerful and Efficient Engine Options
BIG POWER, UP TO 32 HP
Choose from a Kawasaki®, Briggs Vanguard™ or Kohler® air-cooled engine; electronic fuel injection (EFI) options are available.
| Model | STCII-48V-22FX |
| Deck Width | 48" |
| Engine | Kawasaki® FX Series |
| Horsepower | 22 |
| Product Dimensions | |
| Length | 80" |
| Width (chute down) | 60.5" |
| Width (chute in transport position) | 49.75" |
| Height (ROPS folded) | 46.75" |
| Height (ROPS up) | 67.25" |
| Weight | 1,175 lb |
| GENERAL | |
| Total Fuel Capacity | 9.5 gallons |
| Drive Tires | 24" x 9.5"-12" (48" and 52") 24" x 12"-12" (61") |
| Caster Tires | 13" x 6.5"-6", flat-free |
| Seat | 4-point iso-mounted mid-back mounted on operator-suspension platform |
| DRIVE SYSTEM | |
| Drive System Type | Dual Pump and Motor |
| Pumps | Hydro-Gear 12 cc |
| Motors | Parker 14.5 ci |
| Forward Ground Speed | 12 mph |
| Reverse Ground Speed | 5 mph |
| Parking Brake | Foot-operated pedal |
| DECK | |
| Cutting Widths | 48" |
| Type | Velocity Plus™ |
| Cutting Height | 1" to 5" in .25" increments |
| Deck Lift | Adjustable foot-operated pedal |
| Construction | Tri-plate cutter deck constructed of 3 steel plates totaling nearly 1/2" of steel. Reinforcement plates at cutter deck spindles. |
| Spindles | Cast-iron housing with tapered roller bearings. |
| Blade Engagement | Ogura GT3.5 (250 ft lb) Adjustable air-gap for extended life. |
