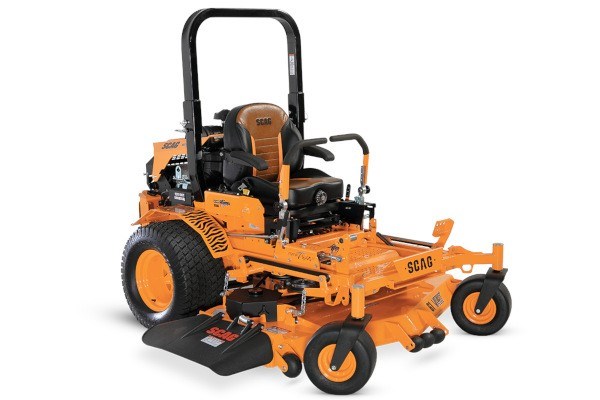

Scag STTII-61V-25KBD
61" Kubota® – Diesel Powered, liquid-cooled
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Features
The envy of the neighborhood
52", 61" OR 72" CUTTING WIDTH
The envy of the industry, Velocity Plus™ decks deliver an amazing quality-of-cut and a wide, even discharge. This deck is equipped with Scag’s ultra-tough cast-iron spindles featuring tapered roller bearings and a top-mounted grease fitting with a relief valve to prevent over-greasing.
Driveshaft-Driven Cutter Decks
ANOTHER REASON THE TURF TIGER IS KING OF THE JUNGLE.
A driveshaft connects the engine to the deck, eliminating the long belt drive and increasing cutting-height range.
Heavy-Duty, Double-Tube Steel Main Frame
SOLID DESIGN FOR YEARS OF DEPENDABLE SERVICE
The Turf Tiger™ is ultra-strong and built for long life. It has a wide mower stance and extra-low center of gravity for ultimate stability and a replaceable front caster-wheel weldment.
Industrial-Grade Hydraulic System
SPEEDS UP TO 12 MPH
Dual Hydro-Gear pumps (16 cc) and Parker wheel motors (18 ci) deliver dependable power. Pump shock valves ensure reliability and long life. Cooling fans help maintain safe operating temperatures.
Auxiliary Hydraulic Oil Cooler
EFFICIENT OPERATION AND ADDED RELIABILITY
Standard-equipment oil cooler extends system life by keeping the hydraulic oil cooler. Cooler location utilizes the engine airflow to draw cool air through the cooling fins.
Command-Comfort Operator Station
THE TURF TIGER COMMAND-COMFORT OPERATOR STATION IS BUILT AROUND YOU.
Components include a torsion-spring suspension seat mounted on a 4-iso-mount system, Quick-Fit™ adjustable steering levers, and an adjustable deck-lift pedal.
Tiger Eye Advanced Monitoring System
KEEP A REAL-TIME "EYE" ON IMPORTANT SYSTEM FUNCTIONS
Depending on the mower model and engine selection, the Tiger Eye™ Advanced Monitoring System monitors a wide variety of systems in real-time, giving you valuable information in just a glance, right from the operator’s seat.
Huge 26" Drive Tires
ROLL FAST AND SMOOTH
Large, 6-ply drive tires deliver superior traction, a smooth ride and allow for easy curb-climbing capability.
Powerful and Efficient Engine Options
HUGE POWER, UP TO 40 HP
Choose from a Kawasaki®, or Briggs Vanguard™ engine; air-cooled or liquid-cooled; electronic fuel injection (EFI) or digital fuel injection (DFI) options. Diesel (Kubota) and propane (Kohler) options are also available.
| Model | STTII-61V-25KBD |
| Deck Width | 61" |
| Engine | Kubota® – Diesel Powered, liquid-cooled |
| Horsepower | 25 |
| Product Dimensions | |
| Length | 85.5" / 85.5" / 88" |
| Width (chute down) | 73.5" |
| Width (chute in transport position) | 62.75" |
| Height (ROPS down) | 46.5" / 52.5" / 46.5" |
| Height (ROPS up) | 68" |
| Weight | 1,496-1,538 lb / 1,606 lb / 1,709 lb |
| GENERAL | |
| Total Fuel Capacity | 12 gallons (Gas/Diesel) 33.5 lb (LP) |
| Drive Tires | 26" x 12"-12" (61" and 72") |
| 26" x 9.5"-12" (52") | |
| Caster Tires | 13" x 6.5"-6" |
| Seat | 4-point iso-mounted torsion-spring suspension seat |
| DRIVE SYSTEM | |
| Drive System Type | Dual Pump and Motor |
| Pumps | Hydro-Gear: 16 cc |
| Motors | Parker: 18 ci |
| Forward Ground Speed | 12 mph (Gas/LP) 10 mph (Diesel) |
| Reverse Ground Speed | 6 mph |
| Parking Brake | Adjustable foot-operated pedal. AUSCO disc brakes. |
| DECK | |
| Cutting Widths | 61" |
| Type | Velocity Plus™ |
| Cutting Height | 1.5" to 6" in .25" increments |
| Deck Lift | Adjustable foot-operated pedal |
| Construction | Tri-plate cutter deck constructed of 3 steel plates totaling nearly 1/2" of steel. Reinforcement plates at cutter deck spindles. |
| Spindles | Cast-iron housing with tapered roller bearings. |
| Blade Engagement | Ogura GT3.5 (300 ft lb) Ogura GT5 (350 ft lb) (Briggs Models) Adjustable air-gap for extended life. |
