Wellington Implement, Ohio

Scag WS23-37BV-EFI

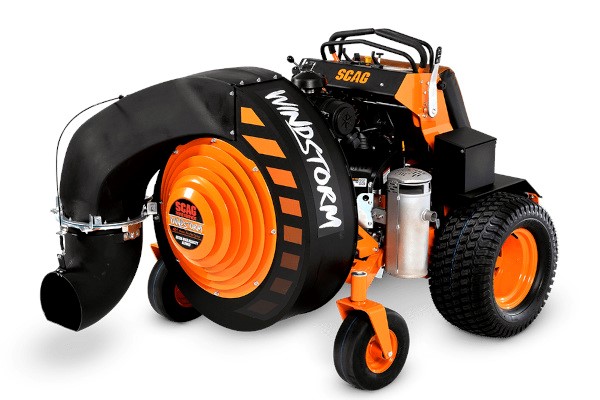

Scag WS23-37BV-EFI for sale at Wellington Implement, Ohio

Double tap to zoom

Scag WS23-37BV-EFI for sale at Wellington Implement, Ohio



Features

Direct airflow where you need it

180° MULTI-DIRECTIONAL AIR-OUTPUT CONTROL AT YOUR FINGERTIPS

Scag’s exclusive NDS (Nozzle Direction System) provides unprecedented control of the air-discharge vertical tilt and horizontal rotation.

Fingertip Switches

DUAL HORIZONTAL-ROTATION CONTROLS

Adjust the nozzle’s rotation up to 180 degrees using an Auto Left/Right Switch and a Fine-Tune Switch.

Convenient Manual Lever

VERTICAL-TILT CONTROL

Adjust the tilt of the discharge nozzle up to 16 degrees: lower to help loosen and blast stubborn debris or higher to prevent blowback.

Massive Air Output

6,000 / 7,500 CFM

Massive air output of up to 6,000 effective CFM (Cubic Feet per Minute) (7,500 theoretical peak CFM) provides incredible ground-clearing force on a variety of surfaces and applications.

Fabricated and Balanced, 23", 8-Blade Impeller

RELIABLE PERFORMANCE AND SMOOTH OPERATION

Heavy-duty blower construction ensures years of dependable service and worry-free performance. The 23″ steel, 8-blade impeller is dynamically balanced for smooth operation. The impeller mounting utilizes a tapered locking hub.

Large, Dual Air Intake

KEEP IT MOVING

Built with a front and rear air intake. Housing is aerodynamically designed to optimize intake without causing turbulence.

Controls and Instrument Panel

YOU'RE IN COMMAND

Proven, ergonomic drive-control lever’s design provides incredible ease-of-use. Instrument panel features NDS, ignition switch, PTO switch, throttle control, choke control and Scag’s exclusive Tiger Eye™ Advanced Monitoring System.

Operator Station

EXTRA-LARGE COMFORT CUSHION AND SUSPENSION PLATFORM

With an extra-thick cushion for operator comfort, the coil-suspension operator platform delivers an unmatched, ultra-comfortable ride. Tie-down points are built in to quickly secure to a trailer. Removable cushion and lower panel allow for quick and easy service access. Convenient engine and hydraulic oil drains are located underneath.

Powerful and Efficient Engine

HUGE POWER – 37 HP

Powered by a 37 hp Vanguard® BIG BLOCK™ EFI air-cooled engine for huge power, along with exceptional efficiency and dependable performance.

Specs

Product Specification Windstorm
Model WS23-37BV-EFI
Total Fuel Capacity 8 Gallons
Engine Briggs Vanguard™ BIG BLOCK™ – electronic fuel injection
Horsepower 37 HP
CFM Output Effective CFM – 6,000
Theoretical Peak CFM – 7,500
Electric Clutch Ogura GT3.5 (250 ft lb) with Softstart Electric Clutch Control
Frame Construction All-steel, welded 10-gauge
Impeller Construction All-steel, welded, 8-blade, dynamically balanced
Impeller Mounting Tapered locking hub
Impeller Diameter / Width 23" / 8.5"
Blower Housing Construction All-steel, welded, 12-gauge front and side housing plate and 10-gauge back housing plate
Blower Housing Width 10"
Blower Tilt Angle 16 degrees of total vertical tilt; 180 degrees of left/right horizontal rotation
Handlebar n/a
Vibration Control n/a
Discharge Opening 69 square inches
Left / Right Discharge Control Nozzle Direction System offers up to 180 degrees of rotation.
Discharge Angle Control Yes – mechanical lever
Axle n/a
Front Wheel(s) 13" x 5"-6", flat-free
Rear Wheels 24" x 12"-12", 4-ply
Accessories Light Kit, Chrome Wheel Covers, Air Filter Monitor
Length 71.5"
Width 51"
Height 47.25"
Weight 943 lb
