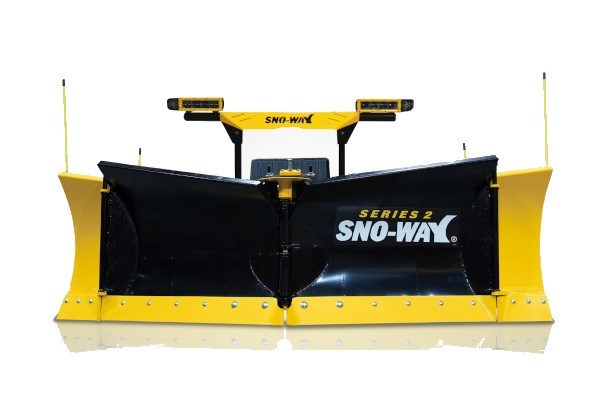

Sno-Way Flared 29RVHD Series 2 Snowplow 10′ Blade
The Only Flared Wing V-Snowplow With Independent Hydraulic Wings
The Sno-Way® 29RVHD Series 2 V-Snowplow is designed for commercial contractors, offering exceptional snow-moving efficiency and adaptability with its flared V-Snowplow wings and hydraulic end wings that adjust from tight spaces to a wide 114-inch span.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Features
The Flared Wing Sno-Way® 29RVHD Series 2 V-Snowplow with Hydraulic End Wings is built for commercial plow contractors that want to move more snow with greater efficiency. The combination of the flared V-Plow wings with the integrated hydraulic end wings provides the greatest snow-moving flexibility and capacity for any plow truck. The 29RVHD Series 2 is built for trucks ranging from ¾ ton to Class 5 work trucks.
The Flared Wing design showcases a 29-inch center and a 36.5-inch-inch outer height for greater snow-casting. Standard structural features include a direct linkage system delivering hydraulic-controlled lift and lower functionality, reactive DownPressure® system providing over 250 lbs. of down force for a cleaner scrape, double jack stand for easy on/off with the Drive-In Mount and a Shock Killer ™ blade design to dampen shock forces going into the frame of the truck.
The 29RVHD uses the Sno-Way® exclusive integrated patented MaxADJUST™ Leveling System to clean and scrape snow most efficiently. This system uses a simple hex bolt to adjust the V-Wing moldboard to tilt forward or back which keeps all edges parallel to the ground, providing superior cleaning performance and impressive back dragging capabilities.
The hydraulic end wings are integrated into the blade design to provide maximum flexibility. Independent wings that can rotate 150 degrees allows the operator to move snow in the tightest areas and then open to full with of 114 inches while allowing for a safe and secure travel width of 102 inches.
The Sno-Way® ESS® system is the standard wiring/lighting platform that provides efficient power and bright lights along with the ability to add optional lighting. This system allows a user with many vehicles to easily move this plow from truck to truck.
The Sno-Way® Flared Wing 29RVHD Series 2 V-Snowplow with Hydraulic End Wings weighs 1075 lbs. and is protected by a triple coat process that includes zinc phosphate wash as an initial layer to prevent corrosion, then an automotive E-Coat primer which penetrates the metal to keep rust from ever starting and a finish coat featuring a military grade powder-coat.
| Model | 29RVHD |
| Width in Feet | 10' |
| Blade Width | 120" Straight 114" Vee Width 102" Transport 104"Scoop |
| 30° angle plow width | n/a |
| Blade Height | Center 29"Outer 36-1/2" |
| Apprx. Weight* (without mount) | 1075 lbs* |
| Vertical/Diagonal Ribs | 6 |
| Trip Springs: Extension | 2 |
| Plow Shoes | Optional |
| Shock Killer™ System | Standard |
| Paint (Triple Coat Protection) | Standard |
| Plow Lights | ESS®LED Thermosensitive |
| Down Pressure® Hydraulic System | Standard |
| FlexForce Frame | Standard |
| Wireless Control | Not Available |
| Mount System | Drive In |
