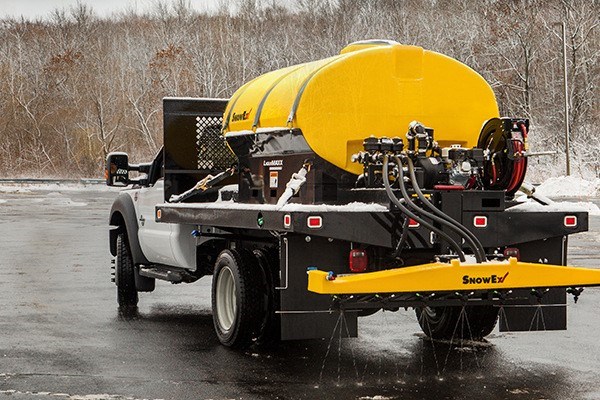

SnowEx TSA-750
The Liqui Maxx™ spray system is fit for use on many types of vehicles—large or small, with a wide range of tank sizes available. This purpose built liquid sprayer can handle most standard commercial applications, making it a versatile and valuable tool in your winter maintenance toolbox.
Compatible with Trucks
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Features
MODULAR DESIGN
The tank, pump and boom assemblies are interchangeable. Users can customize the system according to their needs, and then upgrade individual components later. Choose from standard or deluxe control options.
DELUXE CONTROL
With the deluxe control, the Liqui Maxx can use optional GPS speed sensor to calculate the ideal application rate and then automatically adjust the flow rate as needed. It features 3-zone spray capability.
STANDARD CONTROL
Featuring 3-zone spray capability, the standard control and pump system have toggle switches that individually turn the spray zones on and off for simple, no hassle operation.
ELECTRIC START
For operator convenience and to help conserve fuel, the deluxe model’s electric start allows users to start or stop the engine and operate the choke from inside the cab.
ELLIPTICAL TANKS
The elliptical tanks have a low center of gravity for improved vehicle control.
DRY-SEAL PUMPS
Engineered specifically to handle brine in harsh conditions, the dry-seal pumps are properly filtered and feature a low-water shutoff for maximum durability. HONDA® gas-powered and hydraulic motor-driven pumps available.
HYDRAULIC PUMP
Hydraulic Pump Hydraulic motor-driven pump includes durable dry seal with low water control valve for run dry protection and spool valve for consistent pressure and flow.
ADJUSTABLE BOOM NOZZLES
The boom offers three nozzle sizes on a rotating assembly, and the wing nozzles can be manually adjusted for direction and flow control. Standard nozzles are interchangeable for meeting target application rates up to 8 feet wide at an operating pressure between 30 and 40 psi.
POLY BOOM
The 3-zone poly boom offers superior rust resistance against corrosive materials.
| MODEL | 750 GALLON |
| VEHICLE COMPATIBILITY | Dump Body, Flatbed, or 15,000+ GVWR Truck |
| TANK PART NUMBER | TSA-750 |
| APPROX. WEIGHT (EMPTY) | 740 lb |
| OVERALL DIMENSIONS (W/PUMP) (LXWXH) | 118" x 75" x 55" |
| CAPACITY | 750 gal |
| SUGGESTED GROSS VEHICLE WEIGHT RATING (GVWR) | 16,000 - 19,000 lb |
| VEHICLE CLASS | Class 5 |
| PUMP PART NUMBER | HFS-100-2, HFD-200EX or HFD-200HYD |
| GAS MOTOR/STANDARD CONTROL (HFS-100) | Manual Start 5.5 hp HONDA®/On-off 3-zone control |
| GAS MOTOR/DELUXE CONTROL (HFD-200EX) | Electric Start 5.5 hp HONDA®/Automatic, 3-zone controlled flow (GPS optional) |
| HYDRAULIC MOTOR/DELUXE CONTROL (HFD-200HYD) | Hydraulic with spool valve |
| PUMP FRAME | Powder coated steel with fork pockets |
| PUMP | 210 gpm Dry-Seal centrifugal circulation pump |
| PRIMARY VALVES | Electric ball valves |
| BOOM PART NUMBER | PBA-300-1 |
| OVERALL WIDTH | 8' 2" |
| SPRAY WIDTH (BOOM ONLY) | 8' |
| SPRAY WIDTH (W/ WING SPRAYER) | 24' |
| NOZZLES | Center Boom: 3 Triple Solid Stream Nozzles. Boom Ends: 2 Boomless Side Nozzles |
| SPRAYING CAPACITY | 10 to 60 gal/acre depending on vehicle speed |
