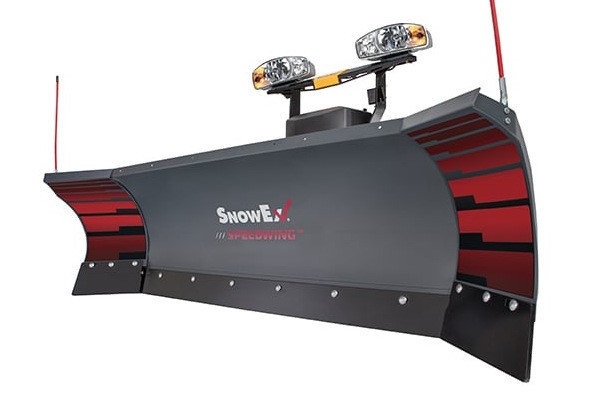

SnowEx 8600SW
A Model of Efficiency—Built to Maximize Profits.
Don’t just clear snow, outsmart it. The SnowEx® SPEEDWING automatic wing plow works as hard as you do. Intuitive mechanical wings automatically adjust as you angle the blade, ensuring the wings are in the optimal position to move the maximum amount of snow. This is how you combine the simplicity of a straight blade plow with the power of a winged plow. Get more snow-clearing done in less time, enhance your profits, and get onto the next job.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Features
Straight Blade Position
For a wider straight blade, the wings can be easily pinned back.
Scoop Position
When the SPEEDWING blade is facing forward, the wings automatically default to scoop mode and carry up to 30% more snow per pass.
Windrowing Position
When angled for windrowing, the leading wing directs more snow into the moldboard to allow a full pass with minimal spill-off.
Wings Automatically Adjust
Mechanical wings automatically adjust from scoop mode to windrow position as you angle the plow.
Wings That Give
Plow wings give on impact. They are spring loaded and retract when hitting an obstacle.
Full-Trip Moldboard
A full-trip moldboard with four coil springs helps protect you, your plow and your truck when striking obstacles.
Steel Cutting Edge
A 6" hardened steel cutting edge provides long-lasting performance and delivers a clean scraping action.
Fully Welded Formed Torque Box
A formed torque box with four welded vertical reinforcement ribs provide unmatched torsional strength to prevent blade twisting.
Easy Access Components Cover
Hydraulic components are protected with a durable poly cover that is easy to remove for quick maintenance access.
Skid-Steer Compatible Mount
The SPEEDWING™ snow plow is also available with skid-steer mounting options. Skid-steer plows are quick to install and easy to operate with an onboard hydraulic system for powerful, efficient operation. An oscillating skid-steer attachment provides six degrees of side-to-side movement for improved scraping and cutting edge wear while reducing damage to the terrain. This design allows the skid-steer loader bucket’s hydraulics to lift and lower the blade for improved operator performance.
| MODEL | 77740 |
| Blade Width | 8'7" |
| Smart Model Number | 8600SW |
| Moldboard Options | Powder-Coated Steel |
| Blade Type | Automatic Winged Blade |
| Vehicle Compatibility | Class 2-5 Trucks & Skid-Steers (50 to 70 HP) |
| Approx. Weight* | 891.5 lbs |
| Plowing Width (Straight) | Scoop: 103" |
| Plowing Width (Full Angle) | Windrow: 93.4" |
| Blade Height | 29.5" |
| Angle Cylinders | 1.5" |
| Cutting Edge | Blade: ½" x 6" (Standard) Wing: ½" x 8" (Standard) |
| Blade/Wing Thickness | 12 ga |
| Reinforcement Ribs | 4 |
| Trip Springs | 4 Steel |
| *Does not include vehicle mount (28 lb - 145 lb weight range). Please refer to the Power Match program for specific vehicle applications. | |
