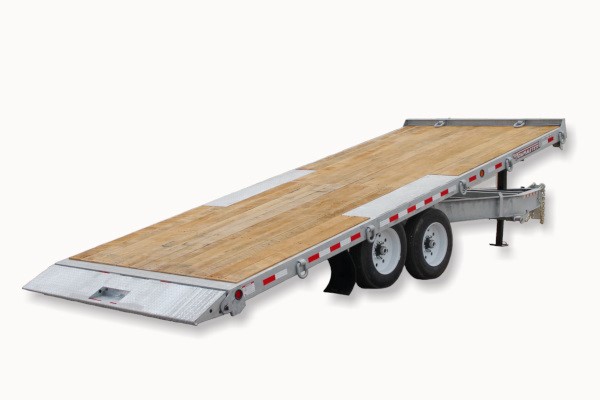

Towmaster Trailers T-16T
The Towmaster® deck-over tilt trailers offer convenience and durability. There are no ramps to hassle with, simply tilt the deck, drive on or off and level the deck back down. It features our patented automatic kick-out ramp that doubles as an under-ride protection bumper. The tilt deck trailer features a single-lever twin-latch system and adjustable hitch. This model has rubber-ride axles for a smooth pull. A deck cushion cylinder eases the deck back into transport position and prevents equipment from slamming the deck down.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Features
Hitch/Tongue
- Adjustable Height Hitch with Bolt-on Coupler
- 3” Pintle
- 7-Pole Round Electrical Plug
- One-Piece Cold-Formed I-Beam Frame Rails
- Integrated Storage Tray (Lockable Lid Optional)
- 12K Bolt-On, Side-Wind, Parking Jack
- Battery Break-Away Kit with Tow Charger and Test Light
- Safety Chains with Hooks
Frame/Deck
- 102” Load Width
- 32.5” Deck Height (Fully Loaded)
- 20’ Tilt-Deck (A Stationary Deck is Optional)
- Tilt Cushion Deck Cylinder
- Dual-Point, Single Lever Deck Lock
- 10” I-Beam Main Frame
- 3” Jr. I-Beam Crossmembers
- 2” Nominal White Oak Deck
- D-Ring Tie-Downs (4 Per Side)
Tail/Approach
- 16” (20°) Approach Ramp Doubles as Under-Ride Protection
- Tilt Deck Load Angle: 14.5°
Axles/Suspension
- Rubber-Ride Torsion Suspension Axles
- (2) 8,000 lb. Axles (4 Wheels)
- Tires -215/75R17.5 Load Range H, 16-Ply
- 17.5” Wheels, 8-Bolt
- Electric Brakes
- Forward Adjusting Brakes
- Oil Bath Hubs
- 34” Axle Spacing
Lights/Wiring
- Rubber Grommet Mounted LED Lights
- Sealed Modular Wiring Harness
Standard Features
- Limited Lifetime Frame Warranty-10 years
- One-Year Full Warranty
- 10 Year Suspension Warranty
- Weatherproof Registration Holder
- Two-Component Polyurethane Primer and Paint
- Trailer Color: Equipment Black
| Specification | T-16T |
| Capacity (pounds) | 16,000 |
| GVWR (pounds) | 22,460 |
| GAWR (pounds) | 16,000 |
| Avg. Weight (pounds) | 6,460 |
| Load Width (in) | 102" |
| Deck Height (in) unloaded | 36" |
| Std. Hitch Size (in) | 3" |
| Tongue/Gooseneck Length (ft) | 5'-2" |
| Safety Chain | 3/8 Gr. 70 |
| Parking Jack | 12K |
| Bolted-on Parking Jack | Y |
| Main Beam | W10x17 Beam |
| Deck Type | Deck-Over Tilt |
| Deck Safety Lip | N |
| Deck Material | White Oak |
| 4' Added Stationary Deck | O |
| Load Angle (degrees) | 14.5 |
| Auto-Ramp Kick-out | S |
| Tie Downs | D-ring |
| No. of Tie Downs | 10 |
| Axle Capacity | 8K |
| No. of Axles | 2 |
| Axle Spread (in) | 34" |
| Hubs | EZ Lube |
| Brake Size | 12.25" x 3.38" |
| Electric Brakes | S |
| Wheels (size) | 17.5" |
| Wheel Bolt Pattern | 8-bolt |
| Tires | 215/75Rx17.5 |
| Tire Load Rating | H |
| Lights | LED |
