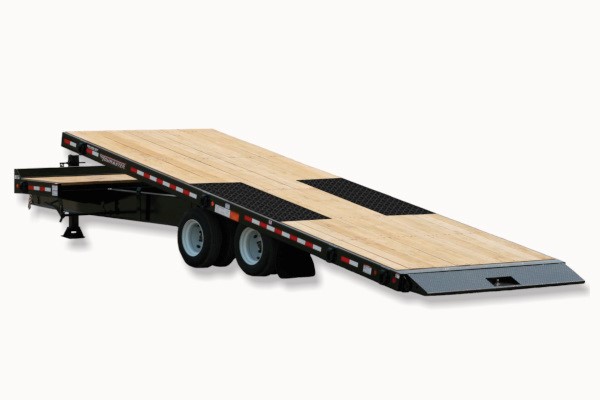

Towmaster Trailers T-30T
The Towmaster® deck-over tilt trailers offer convenience and durability. There are no ramps to hassle with, simply tilt the deck, drive on or off and level the deck back down. It features our patented automatic kick-out ramp that doubles as an under-ride protection bumper. The tilt deck trailer features a single-lever twin-latch system, stationary forward deck, Hutchens® suspension and adjustable hitch. A deck cushion cylinder eases the deck back into transport position and prevents equipment from slamming the deck down.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Features
Hitch/Tongue
- Adjustable Height Hitch with Bolt-on Coupler
- 3” Pintle
- 7-Pole Round Electrical Plug
- One-Piece Cold-Formed I-Beam Frame Rails
- Integrated Storage Tray with Lockable Lid
- 25K Bolt-On, Two-Speed Parking Jack
- Battery Break-Away Kit with Tow Charger and Test Light
- Safety Chains with Hooks
Frame/Deck
- 102” Load Width
- 33” Deck Height (Fully Loaded)
- 24’ Tilt-Deck, 4’ Stationary Deck
- Tilt Deck Cushion Cylinder
- Dual-Point, Single Lever Deck Lock
- 16” I-Beam Main Frame
- 3” Jr. I-Beam Crossmembers
- 2” Nominal White Oak Deck
- D-Ring Tie-Downs (5 Per Side)
Tail/Approach
- 16” (20°) Approach Ramp Doubles as Under-Ride Protection
- Tilt Deck Load Angle: 12°
Axles/Suspension
- Huchens 9700 Adjustable Suspension
- (2) 16,000 lb. Axles (8 Wheels)
- Tires -215/75R17.5 Load Range H, 16-Ply
- 17.5” Hub Piloted Wheels, 8-Bolt
- Electric Brakes
- Brake Size (12.25x7.5)
- Oil Bath Hubs
- 49” Axle Spacing
- Auto Slack Adjusters
Lights/Wiring
- Rubber Grommet Mounted LED Lights
- Sealed Modular Wiring Harness
Standard Features
- Limited Lifetime Frame Warranty-10 years
- One-Year Full Warranty
- 5 Year Suspension Warranty
- Weatherproof Registration Holder
- Two-Component Polyurethane Primer and Paint
- Trailer Color: Equipment Black
| Model | T-30T |
| Capacity (pounds) | 30,000 |
| GVWR (pounds) | 39,800 |
| GAWR (pounds) | 30,000 |
| Avg. Weight (pounds) | 9,800 |
| Load Width (in) | 102" |
| Deck Height (in) unloaded | 36" |
| Std. Hitch Size (in) | 3" |
| Tongue/Gooseneck Length (ft) | 5'-2" |
| Safety Chain | 1/2 Gr. 70 |
| Parking Jack | 25K |
| Bolted-on Parking Jack | Y |
| Main Beam | W16x26 Beam |
| Deck Type | Deck-Over Tilt |
| Deck Safety Lip | N |
| Deck Material | White Oak |
| Added Stationary Deck | 4'-0" |
| Ramp Size (ft x in) | N/A |
| Load Angle (degrees) | 10 |
| Dump Angle | N/A |
| Beavertail | N/A |
| Ramp Hold-Up | N/A |
| Ramp Spring Assist (off deck) | N/A |
| Ramp Spring Assist (off ground) | N/A |
| Tie Downs | D-ring |
| No. of Tie Downs | 10 |
| Axle Capacity | 15K |
| No. of Axles | 2 |
| Axle Spread (in) | 49" |
| Hubs | Oil Bath |
| Brake Size | 12.25"x7.5" |
| Electric Brakes | N/A |
| Air Brakes | Std. |
| Wheels (size) | 17.5" |
| Wheel Bolt Pattern | 8-bolt |
| Tires | 215/75Rx17.5 |
| Tire Load Rating | H |
| Lights | LED |
