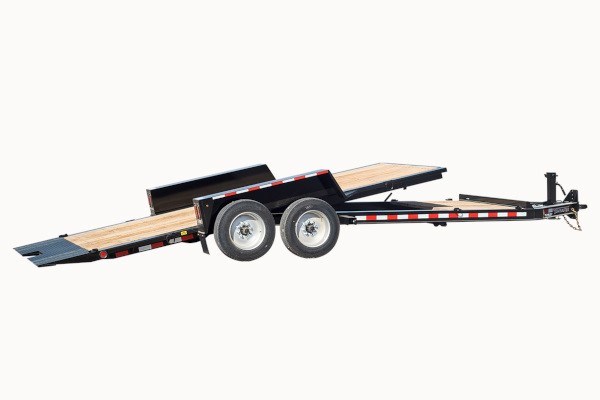

Towmaster Trailers T-16DT
The Towmaster® drop-deck tilt trailers are popular with rental dealers and small contractors. There are no ramps to hassle with; simply tilt the deck and drive on or off. This trailer is built on our cold-formed I-beam tongue and main frame for tough durability. The tilt deck trailer features a single lever twin-latch system, knife-edge approach plate, rubber-ride axles and adjustable hitch. A deck cushion cylinder eases the deck back into transport position and prevents equipment from slamming the deck down.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Features
Hitch/Tongue
- Adjustable Height Hitch with Bolt-on Coupler
- 3” Pintle
- 7-Pole RV Plug
- One-Piece Cold-Formed I-Beam Frame Rails
- Integrated Storage Tray (Lockable Lid Optional)
- 12K Bolt-On, Side-Wind, Drop-Leg Parking Jack
- Battery Break-Away Kit with Tow Charger and Test Light
- Safety Chains with Hooks
Frame/Deck
- 82” Load Width
- 19” Deck Height (Fully Loaded)
- 4’ Stationary Deck
- Tilt Deck Cushion Cylinder
- Dual-Point, Single Lever Deck Lock
- 6” I-Beam Main Frame
- 3” Channel Crossmembers
- 2” Nominal White Oak Deck
- D-Ring Tie-Downs (6 Per Side)
- 12 Gauge One-Piece Formed Fender/Panel
Tail/Approach
- 24” Knife Edge Approach Plate (24” Length is in addition to 16’ or 18’
Deck Length) - 16’ Tilt Deck Load Angle 13°
- 18’ Tilt Deck Load Angle 12°
Axles/Suspension
- Rubber-Ride Torsion Suspension Axles
- (2) 8,000 lb. Axles (4 Wheels)
- Tires -215/75R17.5 Load Range H, 16-Ply
- 17.5” Wheels, 8-Bolt
- Electric Brakes
- EZ Lube Hubs
- 34” Axle Spacing
Lights/Wiring
- Rubber Grommet Mounted LED Lights
- Sealed Modular Wiring Harness
Standard Features
- Limited Lifetime Frame Warranty-10 years
- One-Year Full Warranty
- 10 Year Suspension Warranty
- Weatherproof Registration Holder
- Two-Component Polyurethane Primer and Paint
- Trailer Color: Equipment Black
| Specification | T-16DT |
| Capacity (pounds) | 16,000 |
| GVWR (pounds) | 20,600 |
| GAWR (pounds) | 14,000 |
| Avg. Weight (pounds) | 4,200 |
| Load Width (in) | 80" |
| Deck Height (in) unloaded | 21.5" |
| Std. Hitch Size (in) | 3" |
| Tongue/Gooseneck Length (ft) | 5'-0" |
| Safety Chain | 3/8 Gr. 70 |
| Parking Jack | 12K |
| Bolted-on Parking Jack | Y |
| Main Beam | 6" I-Beam |
| Deck Type | Drop-Deck Tilt |
| Deck Safety Lip | Y |
| Deck Material | White Oak |
| Added Stationary Deck | O |
| Ramp Size (ft x in) | N/A |
| Load Angle (degrees) | 11 |
| Dump Angle | N/A |
| Beavertail | N/A |
| Ramp Hold-Up | N/A |
| Ramp Spring Assist (off deck) | N/A |
| Ramp Spring Assist (off ground) | N/A |
| Tie Downs | D-rings |
| No. of Tie Downs | 8 |
| Axle Capacity | 8K |
| No. of Axles | 2 |
| Axle Spread (in) | 34" |
| Hubs | EZ-Lube |
| Brake Size | 12.25" x 3.38" |
| Electric Brakes | Std. |
| Air Brakes | N/A |
| Wheels (size) | 17.5" |
| Wheel Bolt Pattern | 8-bolt |
| Tires | 215/75Rx17.5 |
| Tire Load Rating | H |
| Lights | LED |
