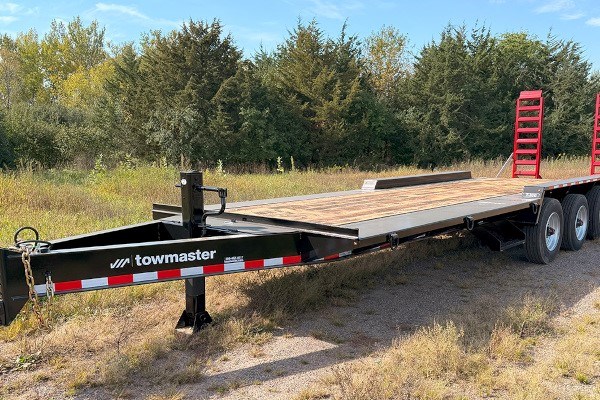

Towmaster Trailers T-30D
The Towmaster T-30D drop-deck trailer is designed for hauling directional drills and other heavy mid-sized equipment. Built on a rugged 10-inch I-beam frame with a 30,000-lb capacity, it rides on three 12,000-lb spring axles with oil bath hubs for lasting performance. A durable white oak deck, spring-assist cleated ramps, and a low 12° load angle make loading and transport efficient. With LED lighting, a sealed wiring harness, and Towmaster’s limited lifetime frame warranty, the T-30D is built to handle tough jobs day after day.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Features
Hitch/Tongue
- Adjustable Height Hitch with Bolt-on Coupler
- 3” Pintle Ring
- 7-Pole RV Plug
- One-Piece Cold-Formed I-Beam Frame Rails
- Integrated Storage Tray (Lockable Lid Optional)
- 25K Bolt-On, Two-Speed Parking Jack
- Battery Break-Away Kit with Tow Charger and Test Light
- Safety Chains with Hooks
Frame/Deck
- 82” Between Fenders
- 32” Deck Height (Fully Loaded)
- 10” I-Beam Main Frame
- 3” Jr. I-Beam Crossmembers, 80,000 PSI
- 2” Nominal White Oak Wood Deck
- Full Width Deck in Front of Fenders/Side Lip Turned Down
- Step on Roadside in Front of Fender
- D-Rings (5 Per Side)
- 10 Gauge One-Piece Formed Fender/Panel
Ramps/Tail
- 4’ Wood Topped Beavertail (12° Load Angle)
- 18” x 6’-0” Channel Sides, Cleated Ladder Style
- Spring-Assist
- Solid Bar Ramp Hold-Ups
Axles/Suspension
- Spring Suspension
- (3) 12,000 lb. Axles (6 Wheels)
- Tires-235/75R17.5, Load Range J, 18-Ply
- 17.5” Wheels, 8-Bolt
- Electric Brakes
- Forward Self-Adjusting Brakes
- Oil Bath Hubs
- 42” Axle Spacing
Lights/Wiring
- Rubber Grommet Mounted LED Lights
- Sealed Modular Wiring Harness
Standard Features
- Limited Lifetime Frame Warranty-10 years
- One-Year Full Warranty
- 5 Year Suspension Warranty
- Weatherproof Registration Holder
- Two-Component Polyurethane Primer and Paint
- Trailer Color: Equipment Black
- Ramp Color: Equipment Red
GAWR (lbs.): 36,000
GVWR (lbs.): 36,700
Weight (lbs.): 6,700
Capacity (lbs.): 30,000
Deck Width (in.): 82"
Deck Length (ft.): 22'
