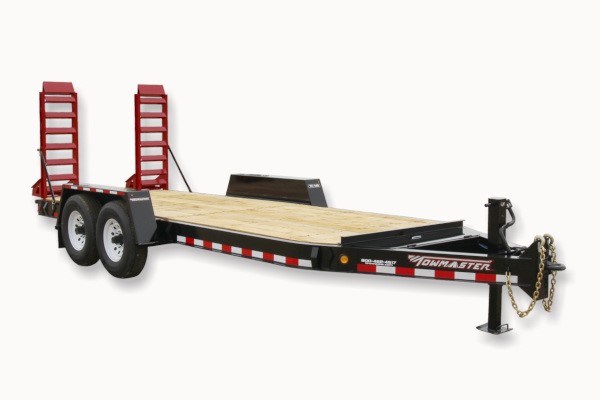

Towmaster Trailers TC-14D
The Towmaster® TC provides the perfect value combining the features you need with the quality a Towmaster built trailer offers. This model works well for skid-loaders, mini-excavators and other small equipment and makes a great economical investment. The TC drop-deck is built on a solid cold-formed one-piece I-beam frame with 3-inch I-beam crossmembers and treated pine wood deck. It is manufactured with rubber torsion axles for a smooth ride, bolt-on parking jack, and solid-bar ramp hold-ups.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Features
Hitch/Tongue
- Adjustable Height, Bolt-on Coupler
- 3” Pintle Ring
- 7-Pole RV Plug
- One-piece Cold Formed I-Beam Frame Rails
- Integrated Storage Tray (Lockable Lid Optional)
- 12k Bolt-on, Side-wind, Drop-Leg Parking Jack
- Battery Break-Away Kit with Tow Charger and Test Light
- Safety Chains with Hooks
Frame/Deck
- 82” Between Fenders
- 21.5” Deck Height (Fully Loaded)
- 8” I-Beam Main Frame
- 3” Jr. I-Beam Crossmembers, 80,000 PSI
- 2” Nominal White Oak Wood Deck
- Formed Flat Bar Tie Downs (4 Per Side)
- 12 Gauge One-Piece Formed Fender/Panel
Ramps/Tail
- 18” x 5’-0” Channel Sides, Cleated Latter Style
- Solid-Bar Pinned Ramp Hold-Ups
- Load Angle: 19°
Axles/Suspension
- Rubber-Ride Torsion Suspension Axles
- (2) 7,000 lb. Axles (4 Wheels)
- Tires-235/85R16, Load Range F, 12-Ply
- 16” Wheels, 8 Bolt
- Electric Brakes
- Forward Self-Adjusting Brakes
- Standard (Non-EZ Lube) Hubs
- 34” Axle Spacing
Lights/Wiring
- Rubber Grommet Mounted LED Lights
- Sealed Modular Wiring Harness
Standard Features
- Limited Lifetime Frame Warranty-10 years
- One-Year Full Warranty
- 10 Year Suspension Warranty
- Weatherproof Registration Holder
- Two-Component Polyurethane Primer and Paint
- Trailer Color: Equipment Black
- Ramp Color: Equipment Red
| Specification | TC-14D |
| Capacity (pounds) | 14,000 |
| GVWR (pounds) | 16,700 |
| GAWR (pounds) | 14,000 |
| Avg. Weight (pounds) | 2,700 |
| Load Width (in) | 82" |
| Deck Height (in) unloaded | 22" |
| Std. Hitch Size (in) | 3" |
| Tongue/Gooseneck Length (ft) | 5'-0" |
| Safety Chain | 3/8 Gr. 70 |
| Parking Jack | 12K |
| Bolted-on Parking Jack | Y |
| Main Beam | 8" I-Beam |
| Deck Type | Drop-Deck |
| Deck Safety Lip | N |
| Deck Material | Treated Pine |
| Added Stationary Deck | N/A |
| Ramp Size (ft x in) | 5'-0"x18" |
| Load Angle (degrees) | 19 |
| Dump Angle | N/A |
| Beavertail | O |
| Ramp Hold-Up | Solid Bar |
| Ramp Spring Assist (off deck) | N/A |
| Ramp Spring Assist (off ground) | O |
| Tie Downs | Formed |
| No. of Tie Downs | 8 |
| Axle Capacity | 7K |
| No. of Axles | 2 |
| Axle Spread (in) | 34" |
| Hubs | Std. |
| Brake Size | 12" x 2" |
| Electric Brakes | Std. |
| Air Brakes | N/A |
| Wheels (size) | 16" |
| Wheel Bolt Pattern | 8-bolt |
| Tires | 235/85Rx16 |
| Tire Load Rating | E |
| Lights | LED |
