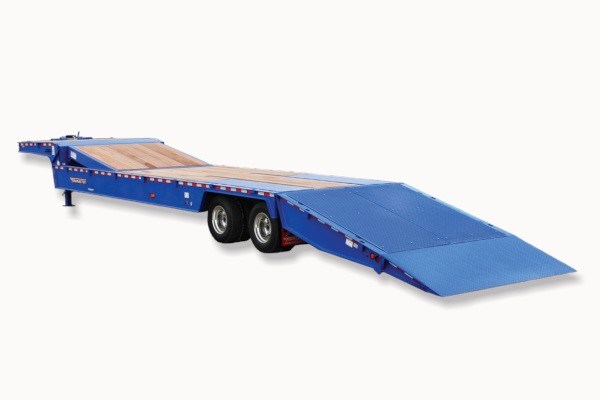

Towmaster Trailers T-110HT

Double tap to zoom



Features

Standard Features:

  • 39” deck height (empty)
  • 8’-6”deck width
  • 10’-0” top deck
  • Air ride suspension and air brakes
  • Dump valve and pressure gauge
  • 12K hydraulic winch/cable
  • Hydraulic fold-under tail
  • LED lights and sealed wiring



Options:

  • Deck ramp with tapered gooseneck
  • 20K winch
  • Remote control
  • Self-contained hydraulic unit
  • Dual hydraulic controls
  • 2-speed 25K parking jacks
  • Additional deck length
  • Several deck traction options
  • Several tie-down options
  • Aluminum wheel options
  • Spare tire and wheel mount
  • Spare tire and wheel
  • Light options
  • Color options: Construction Yellow, Equipment Red, Equipment Blue, Equipment Charcoal

Specifications

Model T-110HT
Capacity (pounds) 110,000
GVWR (pounds) 132,800
GAWR (pounds) 68,100
Avg. Weight (pounds) 22,800
Load Width (in) 102"
Deck Height (in) unloaded 39"
Std. Hitch Size (in) SAE King Pin
Tongue/Gooseneck Length (ft) 10'-0"
Safety Chain N/A
Parking Jack 25K
Bolted-on Parking Jack Y
Main Beam Manufactured
Deck Type Deck-Over
Deck Material Oak
Ramp Size (ft x in) Hydraulic
Load Angle (degrees) 11
Tie Downs Stake Pockets
Axle Capacity 22.5K
No. of Axles 3
Axle Spread (in) 49"
Hubs Oil Bath
Brake Size 12.25" x 7.5"
Air Brakes Std.
Wheels (size) 17.5"
Wheel Bolt Pattern 8-bolt
Tires 235/75Rx17.5
Tire Load Rating H
Lights LED
Full Warranty 1 Year
Frame Warranty 5 Year
