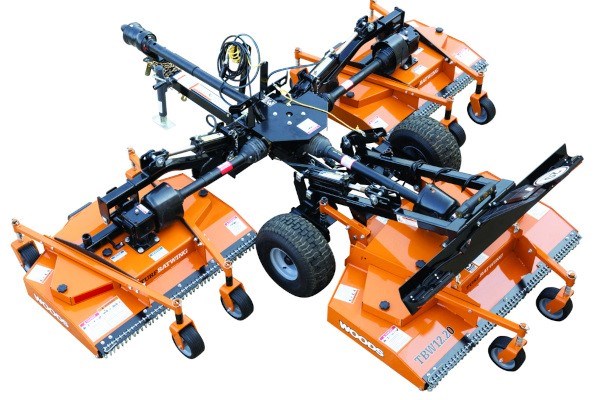

Woods TBW12.20
STANDARD
#1 In Cut Quality
Every Turf Batwing® features the best-in-class cutting technology of the TurfKeeper® Series verified by independent testing.
Faster Finish Results
High blade tip speeds and a high-torque belt design let you mow faster while maintaining superior cut quality.
- Get a Quote
- Send to a Friend
- Payment Calculator
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Features
- Large Caster Wheels enable a smooth finish cut across rugged terrain.
- Wide Discharge Area for better clipping dispersal.
- Easy Shield Removal no tools needed to access belt sheaves, belt, and spring-loaded idler.
- Hydraulic Cylinders fold the mower for easy transport and storage.
- PTO Lock Collar holds PTO collar back for easier tractor connection on professional models.
| Product Tier | Standard |
| Tractor PTO 540 rpm (HP) | 25-60 |
| Hitch | CAT 1 Drawbar |
| Cutting Width (in) | 144 |
| Cutting Height (in) | 1.5 - 5.0 |
| Deck Cut Widths (in) | Wing Deck 48 / Center Deck 60 |
| Deck Overlap (in) | 6 |
| Blade Tip Speed (fpm) | 17,900/18,200 |
| Blade Spindle Bearings | Double ball bearings |
| Overall Wt. / Transport Tongue Wt. (lbs) | 2005 / 384 |
| Transport H x L W (in) | 71.5 x 135 x 91 |
| Transport Tires (in) | (2) 20.5 x 8-10 |
| Caster Wheels (in) | (10) 8 x 3.5 solid |
| Gearbox Rating (HP) | 100 splitter / 30 deck |
| Drive Type | Gearbox over v-belt |
| Drivelines | Main CAT 3 (CV) / Wing CAT 3 |
| Wing Deck Lift Cylinders | 3 x 10 single-acting |
| Center Deck Lift Cylinders | 3 x 8 single-acting |
| Trailer Frame Construction | 4.0 x 4.0 x .25 square tube |
| Deck Thickness (in) | 0.141 |
| Blade Dimensions (in) | (6) .25 x 2.5 x 17.0, (3) .25 x 2.5 x 20.8 |
| Hitch Adjustment | Floating clevis, multi-position |
| Transport Lock | Automatic, manual release |
| Transport Tires | Non-highway speed-rated |
| Cut Height Adjustment | Caster spacers |
| Belt Construction | B-section, Kevlar® |
| Belt Cover | Clutching cover |
| Belt Adjustment | Spring-loaded idler |
| Rear Chain Shielding | Optional |
| Anti-Scalp Rollers | (1) Front and (2) Rear Optional |
| Light Kit | Optional |
| Hydraulic Remotes Required | 1 |
| Hydraulic Wing Unlock | Optional |
| Warranty Spindle/Gearbox | 6-Jan |
| Woods C® | Compact/Subcompact |
