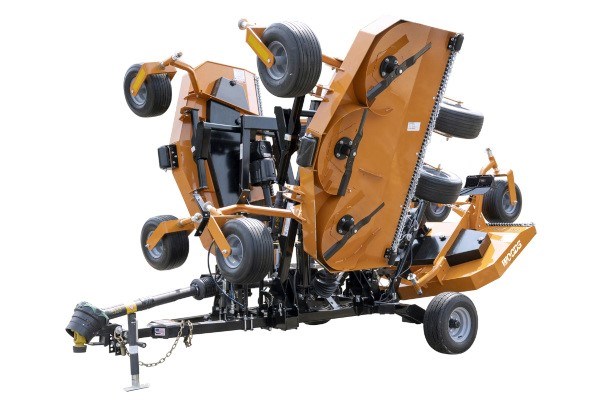

Woods TBW17.40
PROFESSIONAL
#1 In Cut Quality
Every Turf Batwing® features the best-in-class cutting technology of the TurfKeeper® Series verified by independent testing.
Read Cut Quality Study.
Faster Finish Results
High blade tip speeds and a high-torque belt design let you mow faster while maintaining superior cut quality.
- Get a Quote
- Send to a Friend
- Payment Calculator
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Features
- Large Caster Wheels enable a smooth finish cut across rugged terrain.
- Wide Discharge Area for better clipping dispersal.
- Easy Shield Removal no tools needed to access belt sheaves, belt, and spring-loaded idler.
- Hydraulic Cylinders fold the mower for easy transport and storage.
- PTO Lock Collar holds PTO collar back for easier tractor connection on professional models.
| Product Tier | Professional |
| Tractor PTO HP | 40-80 |
| Hitch | CAT 2, Drawbar |
| Hitch Adjustment | Floating clevis, multi-position |
| Cutting Width (in) | 204 |
| Cutting Height (in) | 1.5 – 5.5 |
| Wing Deck Cut Width (in) | 72 |
| Center Deck Cut Width (in) | 72 |
| Deck Overlap (in) | 6 |
| Overall Width (in) | 205 |
| Transport Width (in) | 101 |
| Max Overall Length (in) | 182 |
| Transport Length (in) | 176 |
| Splitter Gearbox HP | 100 |
| Blade Tip Speed (fpm) | 18,100 |
| Drive Type | Gearbox over v-belt |
| Input Driveline | CAT 4 (const. vel.) |
| Wing Drivelines | CAT 3 |
| Transport Tires (in) | (2) 20.5 x 8-10 |
| Caster Wheel Bearings | Tapered roller bearings |
| Caster Wheels (in) | (10) 18 x 9.5-8 pneumatic |
| Wing Deck Lift Cylinders | 3 x 10 single-acting |
| Center Deck Lift Cylinders | 3 x 8 single-acting |
| Trailer Frame Construction | 4.0 x 4.0 x .25 square tube |
| Deck Thickness | 7 gauge |
| Blade Spindles | (9) ductile iron |
| Blade Spindle Bearings | Triple ball bearings |
| Blade Dimensions (in) | (9) .25 x 2.5 x 25 |
| Transport Lock | Automatic, manual release |
| Transport Tires | Highway speed-rated |
| Cut Height Adjustment | Spacer on caster |
| Caster Pivot Bushings | Yes |
| Belt Construction | HB-section, Aramid |
| Belt Adjustment | Spring-loaded idler w/bearing pivot |
| Light Kit | Standard |
| Chain Shielding | Optional |
| Hydraulic Wing Unlock | Optional |
