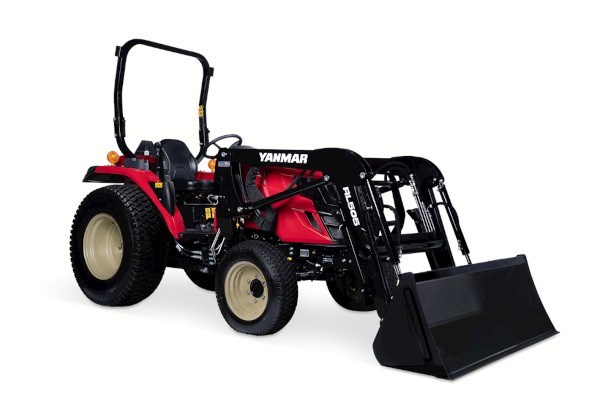

Yanmar SM240H
- Best for 15 to 45 acres
- 36.9 horsepower
- 2,116 lbs front lift capacity
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Features
Elevate your experience with the next generation of lift capacity. Introducing the SM series - new line of tractors prepare to tackle your heavy loads.
Description
Offering Yanmar craftsmanship and comfort in a compact, agile body, the SM240H provides powerful multi-functional capability with the ease of a clutch-less hydrostatic transmission. Getting your work done has never been so smooth.
Features
- 2,116lb. Loader Lift Capacity (Maximum Height at Pivot Pin)
- Hydrostatic Transmission
- Dual Brakes
- Factory-option Yanmar Backhoe Available
ADVANCED TECHNOLOGY AND DESIGN
This extraordinary machine offers cutting-edge features, all expertly crafted for effortless use. From the convenient, foldable ROPS to the joystick-operated front-end loader, every aspect has been designed to enhance your land-working experience.
TRANSFORMATIONAL PERFORMANCE
With a Yanmar engine providing maximum torque at lower RPMs, it tackles heavy loads and implements. Enjoy one of the highest lift capacities on the market.
EXCEPTIONAL QUALITY
Providing extraordinary durability and reliability plus an ergonomic operator station, it exceeeds industry standards in every way. It's a legacy your family will cherish for generations.
| SPECIFICATIONS | |
| Ideal Acreage | 15-45 |
| Engine HP | 36.9 |
| Loader Lift Capacity | 2,116 LBS. |
| Transmission | Hydrostatic |
| POWERTRAIN | |
| Engine Manufacturer | Yanmar |
| Engine Gross Power | 36.9 HP (27.5 kW) |
| PTO Power | 27.5 HP (21.0 kW) |
| Rated Engine Speed | 3,000 RPM |
| Clutch | - |
| CAPACITIES | |
| Fuel Tank | 9.0 gal. (34 L) |
| DRIVETRAIN | |
| Transmission Type | Hydrostatic |
| Rear Differential Lock | Foot Pedal Engagement |
| 2WD/4WD Engagement | Selectable |
| PTO Type | Independent |
| PTO Control | Electric/Hydraulic |
| Rear PTO Speed | 540 RPM |
| HYDRAULICS | |
| Pump Capacity (Steering) @ Rated RPM | 4.4 GPM (16.66 L/min) |
| Pump Capacity (Implement) @ Rated RPM | 6.1 GPM (23.09 L/min) |
| Pump Capacity (Total) @ Rated RPM | 10.5 GPM (39.75 L/min) |
| 3-Point Hitch Category | 1 |
| 3-Point Lift Capacity (Std.) | 2,639 lbf. (1,197 kgf) |
| 3-Point Lift Capacity at 24" (61 cm) | 1,558 lbf. (707 kgf) |
| Remote Valves | Optional (1 or 2) |
| 3rd Function Valve | Optional |
| DIMENSIONS AND WEIGHT | |
| Minimum Ground Clearance | 12.8" (325 mm) |
| Total Weight | 3,020 lb. (1,370 kg) |
| FRONT END LOADER | RL505 |
| Maximum Lift Height to Pivot Pin | 101.5" (2,578 mm) |
| Lift Capacity to Maximum Height at Pivot Pin | 2,116 lb. (960 kgf) |
| Breakout Force at Ground Level Pivot Pins | 3,435 lb. (1558 kgf) |
