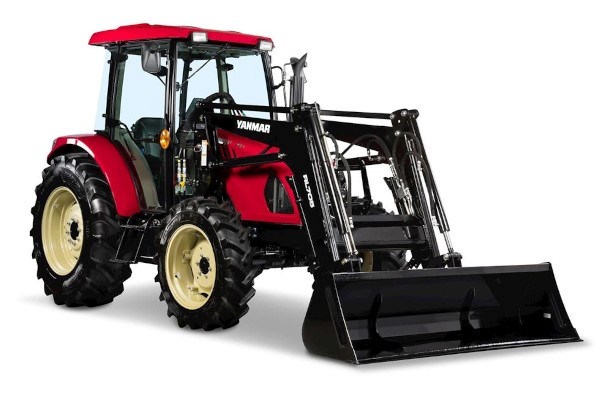

Yanmar SM475
- Best for 35 to 75 acres
- 74 horsepower
- 3,325 lbs front lift capacity
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Features
Elevate your experience with the next generation of lift capacity. Introducing the SM series - new line of tractors prepare to tackle your heavy loads.
Description
Harnessing the highest HP Yanmar offers, the SM475 gives you the confidence to power through any job. Its powerful design is intuitive to your needs so you can concentrate on the land.
Features
- Luxury cab with AC/heat and more
- Power Shuttle Transmission
- 3,325lb Lift Capacity (Maximum Height at Pivot Pin)
- Mechanical Suspension Seat
ADVANCED TECHNOLOGY AND DESIGN
This extraordinary machine offers cutting-edge features, all expertly crafted for effortless use. From the convenient, foldable ROPS to the joystick-operated front-end loader, every aspect has been designed to enhance your land-working experience.
TRANSFORMATIONAL PERFORMANCE
Specializing in precision tasks like trenching, it ensures greater impact with fewer passes. And its high-capacity fuel tank means it can tackle medium- to heavy-duty tasks for extended durations.
EXPERIENCE LUXURY
Boasting a dual-entry deluxe cab, advanced climate control, ergonomic operator station with digital command hub, and an immersive audio system, it empowers you to work your land in the utmost comfort.
| SPECIFICATIONS | |
| Ideal Acreage | 35-75 |
| Engine HP | 74 |
| Transmission | Power Shuttle |
| POWERTRAIN | |
| Engine Manufacturer | Deutz |
| Engine Gross Power | 74 HP (55.4 kW) |
| PTO Power | 64.1 HP (47.8 kW) |
| Rated Engine Speed | 2,200 RPM |
| Clutch | Wet Multi Plate |
| CAPACITIES | |
| Fuel Tank | 23.8 gal. (90 L) |
| DRIVETRAIN | |
| Transmission Type | Power Shuttle |
| Rear Differential Lock | Foot Pedal Engagement |
| 2WD/4WD Engagement | Selectable |
| PTO Type | Independent |
| PTO Control | Electric/Hydraulic |
| Rear PTO Speed | 540 RPM |
| HYDRAULICS | |
| Pump Capacity (Steering) @ Rated RPM | 5.8 GPM (22 L/min) |
| Pump Capacity (Implement) @ Rated RPM | 10.3 GPM (39.1 L/min) |
| Pump Capacity (Total) @ Rated RPM | 16.1 GPM (61.1 L/min) |
| 3-Point Hitch Category | Category 2 |
| 3-Point Lift Capacity (Std.) | 5,115 lbf. (2,320 kgf) |
| 3-Point Lift Capacity at 24" (61 cm) | 3,418 lbf. (1,550 kgf) |
| Remote Valves | Optional (2) |
| 3rd Function Valve | Optional |
| DIMENSIONS AND WEIGHT | |
| Minimum Ground Clearance | 18.3" (465 mm) |
| Total Weight | 18.3" (465 mm) |
| FRONT END LOADER | RL505 |
| Maximum Lift Height to Pivot Pin | 133.8" (3,398 mm) |
| Lift Capacity to Maximum Height at Pivot Pin | 3,325 lb. (1,508 kgf) |
| Breakout Force at Ground Level Pivot Pins | 5,485 lb. (2,488 kgf) |
