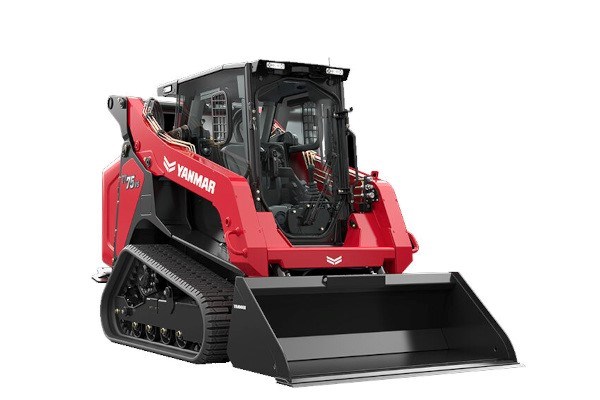

Yanmar Construction TL75VS-1C
Elevate Your Productivity To New Heights
Introducing the TL75VS-1C, a versatile powerhouse dominating construction, utility, and rental sectors. With towering lift height, robust capacity, and Yanmar reliability, it’s the epitome of uncompromising performance. Powered by a 71.5-horsepower Yanmar Tier 4 Final diesel engine and 2,550-pound rated operating capacity, it excels in heavy-duty tasks with precision and efficiency.
Weight: 9,205 lbs
Horsepower: 71.5 hp
ROC: 2,555 lbs
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Features
Vertical Lift Mastery
Backed by a 2-year/2,000 hour warranty, TL75VS-1C delivers unmatched cab comfort and cutting-edge technology all in one. From its hardy construction to the savvy SmartAssist telematics, this machine is a force to be reckoned with, blending relentless performance with intuitive ease of use. It’s not just a tool; it’s your strategic partner in conquering the toughest jobs with unparalleled precision and grit.
- Comfort Meets Functionality
Inside the TL75VS-1C, the suspended seat keeps you focused during long hours, while the touchscreen display puts control at your fingertips. Panoramic visibility ensures safety and strategic maneuvering. For quick exits, the removable roof hatch adds convenience. It’s comfort, control, and safety in one. - Unyielding Performance
Backed by a 1-year/1,000-hour warranty, the TL75VS-1C’s rugged undercarriage, heavy-duty tracks, and construction-grade components ensure lasting durability. Accessible service points and a swing-out radiator make maintenance a breeze, minimizing downtime. It’s a machine built to withstand the toughest challenges while keeping operations running smoothly. - Tactical Command
The TL75VS-1C boasts a 7-inch color display for real-time insights, alongside efficiency features like self-leveling technology and auto two-speed mode, enhancing productivity and precision.
| Operating Specifications | |
| Loader Arms | Vertical |
| Operating Weight (Open ROPS Base) | 9,205 lbs |
| Operating Weight (AWC Cab Base) | 9,545 lbs |
| Ground Pressure at Operating Weight | 6.1 psi |
| Rated Operating Capacity (35% of tipping load) | 2,555 lbs |
| Tipping Load | 7,300 lbs |
| Travel Speed, Maximum | 7.5 mph |
| Engine | |
| Type | Diesel 4-cylinder, Intercooled Turbo |
| Model | Yanmar 4TN86CHT |
| Gross Power Rating | 71.5 hp |
| Displacement | 2.1 L |
| Torque, Peak | 193.8 ft-lb |
| Cooling System | Belt-driven fan and anti-freeze filled radiator cooling system |
| Intake Air Cleaner | Dual-stage |
| Emission Controls | Meets all U.S. EPA Tier 4 final standards |
| Undercarriage | |
| Track Width | 12.6 in. |
| Length of Track on Ground | 60 in. |
| Ground Contact Area | 1,512 in.2 |
| Drive System | Two hydrostatic direct drive sprockets controlled by single joystick |
| Undercarriage Suspension | Two independent torsion axles per undercarriage |
| Auxiliary Hydraulic System | |
| Pump Capacity, Low/High | 21.4 / 26.7 gpm |
| Max System Pressure, Low / High | 3,480 / 3,771 psi |
| Controls | Intermittent via joystick button or continuous via console switch. |
| Couplers | Flat Faced Couplers: 1/2 in. |
| Cooling System | High efficiency side-by-side radiator and oil cooler |
| Electrical System | |
| Nominal Charge | 12 V |
| Battery | 800 CCA |
| Charging System | 80 amp alternator |
| Outlets | 1-12 V port inside operator station |
| Wiring | Pre-wired for all factory-available accessories |
| Standard Features | Block heater |
| Service Capacity | |
| Fuel Tank | 21.4 gal |
| Operator Station | |
| Cab | ROPS or All-Weather Cab with curved glass door |
| Seat | Mechanical suspension seat with 2-in. seat belt |
| Controls | Electronic joystick controls with ISO or H pattern settings, adjustable operator profiles and speeds |
| Engine Speed | Standard hand dial operation with foot pedal optional |
| 7-in. Color Machine Display | Fuel, tachometer, engine temp, hour meter, battery, trip meter, hydraulic temperature, water temperature, multiple languages |
| ROPS | ROPS: ISO 3471 Restraint-ISO 6683, SAE J2292, Cal OSHA 1596 |
| FOPS | ISO 3449 Level 1(level 2 optional), emergency roof exit |
| Illumination | 2 - Forward-facing LED lights 2 - Rear-facing LED lights |
| Standard Features | Mechanical suspension seat, fixed joystick controls, 7-in. color display, roof panel, rear window, cupholder, two speed, standard flow |
| Optional Features | All Weather Cab, heat & A/C, adjustable joystick controls, foot throttle, phone holder, radio with Bluetooth and USB, roof insulation, high flow, 3 in. seat belt, air ride seat, rotating magnetic beacon, LED side lights, backup camera, SmartAssist Remote telematics, 1/2 in. polycarbonate door, Hyd Q/A, attachment control kit, dual direction bucket positioning, return to position and ride control |
