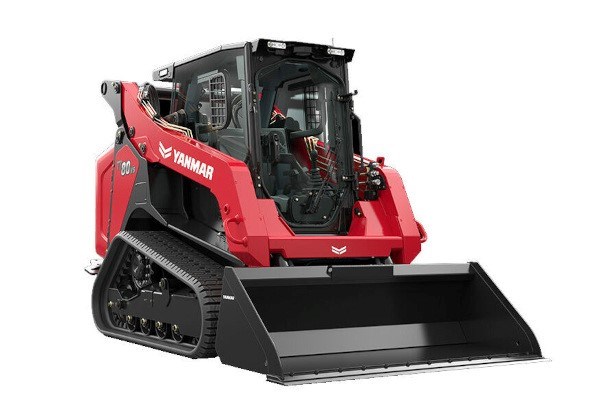

Yanmar Construction TL80VS-1C
Unleash Power-Packed Performance
Introducing the TL80VS-1C, a compact powerhouse with 71.5 horsepower, rated for 2,900 lbs of operating capacity. Its auxiliary hydraulic system pump capacity of 34.3 gpm surpasses others in its class, ensuring exceptional performance. This machine redefines compact equipment, rivaling higher horsepower machines yet retaining agility for tight spaces.
Weight: 9,610 lbs
Horsepower: 71.5 hp
ROC: 2,900 lbs
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Features
Conquer Every Surface
This compact loader isn’t just about power and versatility; it’s about efficiency and ease of use. The TL80VS-1C is engineered to ensure maximum productivity while minimizing operator fatigue. Whether you’re loading materials, maneuvering through tricky terrain, or tackling at-height tasks, the TL80VS-1C is your go-to choice for getting the job done right the first time, every time.
- Versatile Productivity
With a suspended seat, touchscreen display, and panoramic view, the TL80VS-1C gives you the edge you need to tackle every task with confidence and precision. It’s not just a cab; it’s your command center for conquering challenges with ease. - Reliability Engineered
Built to endure and deliver unmatched performance, the TL80VS-1C is your reliable partner in conquering the toughest challenges. With a 2-year/2,000-hour warranty, rugged undercarriage, and heavy-duty tracks, this machine is designed for year-round dependability and consistent performance. - Add Digital Dexterity
Harness the TL80VS-1C’s grit with Dual Direction Self Leveling and Automatic Ride Control for max material retention and streamlined operation. The auto 2-speed kicks into gear, optimizing speed modes, while the rugged 7-inch color display keeps you in the know.
| Operating Specifications | |
| Loader Arms | Vertical |
| Operating Weight (Open ROPS Base) | 9,610 lbs |
| Operating Weight (AWC Cab Base) | 9,950 lbs |
| Ground Pressure at Operating Weight | 5.1 psi |
| Rated Operating Capacity (35% of tipping load) | 2,900 lbs |
| Tipping Load | 8,286 lbs |
| Travel Speed, Maximum | 8 mph |
| Engine | |
| Type | Diesel 4-cylinder, Intercooled Turbo |
| Model | Yanmar 4TN86CHT |
| Gross Power Rating | 71.5 hp |
| Displacement | 2.1 L |
| Torque, Peak | 193.8 ft-lb |
| Cooling System | Belt-driven fan and anti-freeze filled radiator cooling system |
| Intake Air Cleaner | Dual-stage |
| Emission Controls | Meets all U.S. EPA Tier 4 final standards |
| Undercarriage | |
| Track Width | 15.7 in. |
| Length of Track on Ground | 60 in. |
| Ground Contact Area | 1,884 in.2 |
| Drive System | Two hydrostatic direct drive sprockets controlled by single joystick |
| Undercarriage Suspension | Two independent torsion axles per undercarriage |
| Auxiliary Hydraulic System | |
| Pump Capacity, Low/High | 21.4 / 26.7 gpm |
| Max System Pressure, Low / High | 3,480 / 3,771 psi |
| Controls | Intermittent via joystick button or continuous via console switch. |
| Couplers | Flat Faced Couplers: 1/2 in. |
| Cooling System | High efficiency side-by-side radiator and oil cooler |
| Electrical System | |
| Nominal Charge | 12 V |
| Battery | 800 CCA |
| Charging System | 80 amp alternator |
| Outlets | 1-12 V port inside operator station |
| Wiring | Pre-wired for all factory-available accessories |
| Standard Features | Block heater |
| Service Capacity | |
| Fuel Tank | 21.4 gal |
| Operator Station | |
| Cab | ROPS or All-Weather Cab with curved glass door |
| Seat | Mechanical suspension seat with 2-in. seat belt |
| Controls | Electronic joystick controls with ISO or H pattern settings, adjustable operator profiles and speeds |
| Engine Speed | Standard hand dial operation with foot pedal optional |
| 7-in. Color Machine Display | Fuel, tachometer, engine temp, hour meter, battery, trip meter, hydraulic temperature, water temperature, multiple languages |
| ROPS | ROPS: ISO 3471 Restraint-ISO 6683, SAE J2292, Cal OSHA 1596 |
| FOPS | ISO 3449 Level 1(level 2 optional), emergency roof exit |
| Illumination | 2 - Forward-facing LED lights 2 - Rear-facing LED lights |
| Standard Features | Mechanical suspension seat, fixed joystick controls, 7-in. color display, roof panel, rear window, cupholder, two speed, standard flow |
| Optional Features | All Weather Cab, heat & A/C, adjustable joystick controls, foot throttle, phone holder, radio with Bluetooth and USB, roof insulation, high flow, 3 in. seat belt, air ride seat, rotating magnetic beacon, LED side lights, backup camera, SmartAssist Remote telematics, 1/2 in. polycarbonate door, Hyd Q/A, attachment control kit, dual direction bucket positioning, return to position and ride control |
